Fiber and Diode Parameters, Deep-Marking Fixtures, and DfM Batch Production
Engraving custom pet identification and military-style dog tags requires precise control over power density and thermal dissipation to ensure permanent, high-contrast marks without warping the thin metal substrate. Because dog tags are typically stamped from stainless steel, brass, or anodised aluminium, selecting the correct laser source—such as a MOPA or standard fiber laser for bare metals, or a high-power diode for coated blanks—is critical for professional output. By implementing custom multi-tag pin-locator jigs, optimizing line intervals, and applying protective corrosion-resistant treatments, local workshops can scale production efficiently. These strict process controls minimize scrap rates and guarantee crisp, legible text and graphics suited for retail pet stores and tactical equipment suppliers.
Laser Source Selection and Parameter Optimization
Fiber Laser Settings for Stainless Steel:
Utilizing high frequency, medium power, and fast scanning speeds to achieve a deep, dark black anneal or physical etch on stainless steel dog tags without burning through the thin profile.
Diode and CO2 Marking Compounds:
Applying laser marking spray (such as Cermark) onto bare brass or stainless steel when using diode or CO2 lasers, bonding the chemical agent permanently to the metal surface via thermal reaction.
Precision Workholding and Batch Alignment Jigs

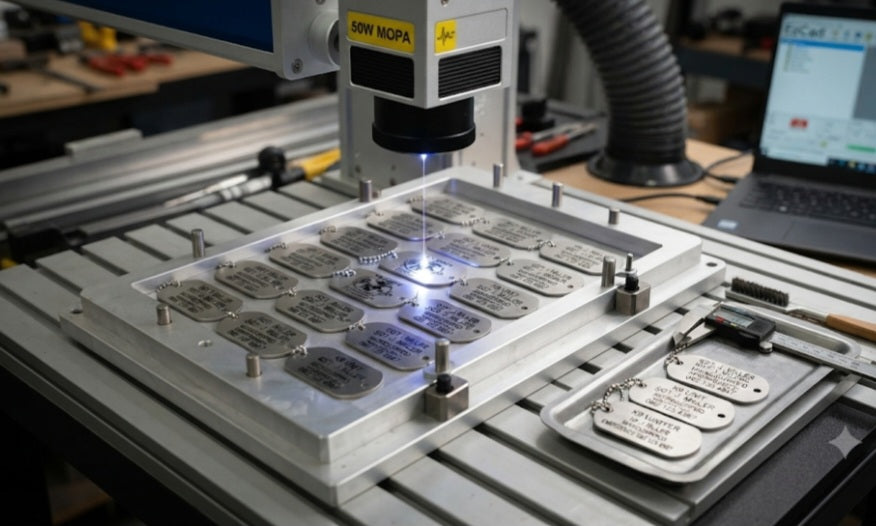

Pin-Locator Plate Fixtures:
Machining an aluminium or acrylic base plate with countersunk pockets and locating pins that match the exact outer dimensions and hole placements of standard dog tags.
Spring-Loaded Clamping:
Securing thin metal blanks firmly against the bed datum to prevent thermal curling or vibration-induced shifting during high-speed vector marking passes.
Post-Processing and Corrosion Protection
Chemical Residue Removal:
Washing engraved stainless steel and brass tags in an ultrasonic cleaner or wiping them down with acetone and denatured alcohol to strip away soot and marking compound residue.
Edge Deburring and Sealing:
Tumbling finished tags in a rotary tumbler or applying a thin clear lacquer coat to exposed carbon steel edges to prevent rust formation over extended outdoor use.
Design-for-Manufacture (DfM) Parameters for Batch Orders
Text Sizing and Legibility Margins:
Restricting critical contact text and emergency phone numbers to a minimum 1.5mm letter height with deep line spacing to maintain readability even after years of surface wear.
Hole Clearance Buffers:
Programming vector paths to stay at least 2mm clear of the pre-punched hanging eyelet to avoid structural weakening near the split-ring attachment point.
Integrating dog tag production into an existing workshop workflow offers a high-margin product line with minimal material overhead. By combining rigorous jig alignment with optimized laser parameter profiles, operators can execute large-volume custom orders with absolute consistency. Furthermore, implementing automated vision inspection systems downstream ensures that every batch meets stringent quality standards before final packaging and distribution.
