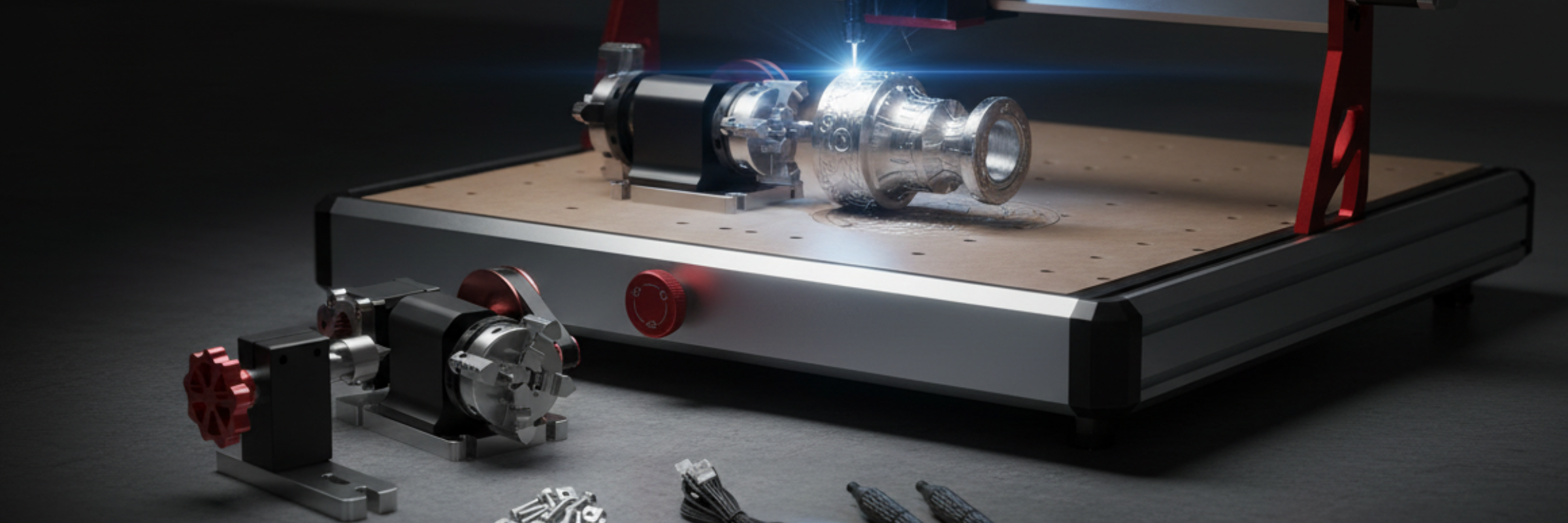

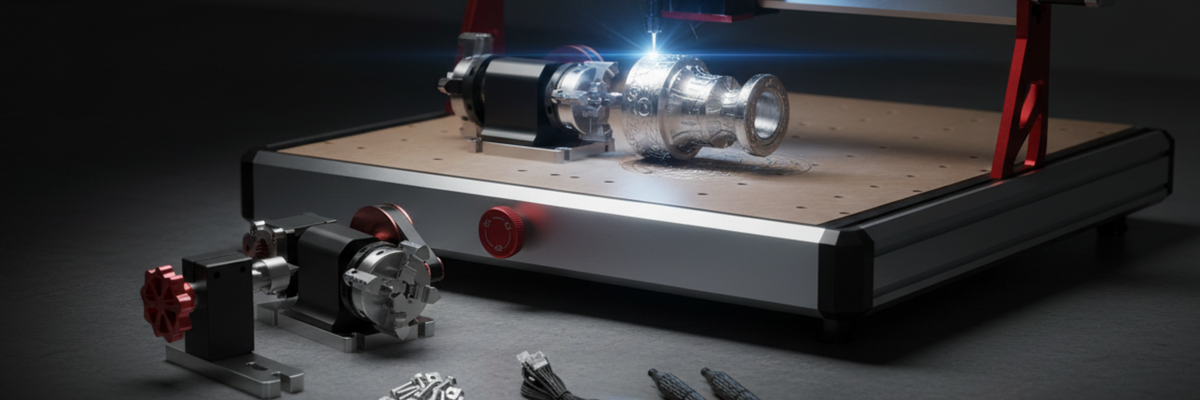

CNC Rotary Axis Modules for Cylindrical Machining
Expand the capabilities of your CNC router with a CNC rotary axis, also known as a fourth axis. A rotary module adds controlled rotational movement to a compatible CNC machine, allowing cylindrical, curved and irregular-shaped workpieces to rotate during engraving or machining.
This collection includes the TwoTrees 4th Axis CNC Rotary Module Kit for the TTC450 and TTC450 Pro. It is designed for makers, workshops and businesses that want to move beyond flat-bed machining and create detailed work around round objects.
What Is a CNC Rotary Axis?
A standard CNC router operates along the X, Y and Z axes. A fourth axis adds rotational movement, allowing the workpiece to turn while the cutting tool follows a programmed toolpath.
This makes it possible to engrave, carve or machine around the circumference of an object without manually removing and repositioning it. The result is improved alignment, repeatability and consistency for compatible cylindrical projects.
Compatible with the TwoTrees TTC450 Series
The rotary module in this collection is intended for selected TwoTrees CNC routers, including:
- TwoTrees TTC450 CNC Router
- TwoTrees TTC450 Pro CNC Router
Compatibility should be confirmed before purchase. Check the CNC controller, motor connection, mounting space, firmware and software requirements to ensure the rotary module can be integrated correctly with your machine.
Applications for a CNC Fourth Axis
A CNC rotary axis can support a wide range of personalised, decorative and functional applications, including:
- Engraving tumblers and cylindrical drinkware
- Carving wooden handles and tool grips
- Machining pens and writing instruments
- Creating chess pieces and game components
- Engraving pipes and tubing
- Producing balusters, columns and table legs
- Personalising bottles and cylindrical containers
- Manufacturing round prototype components
- Creating decorative rings, sleeves and curved parts
- Producing custom gifts and promotional items
Materials Suitable for Rotary CNC Machining
The materials that can be processed depend on the CNC router, spindle, cutting bit, workholding and selected machining settings. Common materials may include:
- Wood and timber products
- MDF and engineered wood
- Acrylic and selected plastics
- Foam and modelling materials
- Wax and prototyping materials
- Selected soft metals supported by the CNC machine
- Approved composite materials
Always confirm that the machine, rotary module and tooling are suitable for the material before machining.
Chuck and Tailstock Workholding
Rotary-axis systems commonly use a chuck to grip one end of the workpiece and an adjustable tailstock to support the opposite end. This arrangement helps maintain alignment and stability while the object rotates.
The workpiece must be centred and clamped securely before operation. Maximum diameter, usable length and supported weight will depend on the rotary module and the available working space on the CNC bed.
Benefits of Adding a Fourth Axis
A compatible CNC rotary module can provide several workflow and production benefits:
- Controlled rotation for cylindrical objects
- Improved positioning compared with manual rotation
- More consistent full-wrap engraving
- Reduced need for repeated manual repositioning
- Greater project versatility
- Repeatable production of personalised items
- Expanded small-business and manufacturing opportunities
- Support for detailed curved and round components
Software and Toolpath Requirements
Using a fourth axis may require compatible CAM software, controller settings and correctly prepared rotary toolpaths. Some CNC systems use dedicated rotational-axis commands, while others convert linear movement into rotational movement.
Before starting a project, confirm that your software supports the selected rotary workflow and that the machine has been calibrated correctly for the workpiece diameter.
Setting Up a CNC Rotary Axis
Correct installation and calibration are important for accurate results. General setup steps may include:
- Securely mounting the rotary module to the CNC bed
- Connecting the motor to the supported controller port
- Aligning the chuck and tailstock
- Centred and firmly clamping the workpiece
- Entering the correct diameter or circumference
- Confirming rotational steps and calibration settings
- Setting the correct work origin
- Running a low-speed test before final machining
Always follow the manufacturer’s installation instructions for the selected CNC router and rotary module.
Choosing the Right Cutting Tools
The correct CNC bit depends on the material, design and required finish. V-bits are commonly used for lettering and decorative engraving, while end mills are suitable for profiling and material removal. Ball-nose cutters are useful for curved surfaces and detailed 3D carving.
Check the shank diameter, collet compatibility, spindle speed and recommended feed rate before using a cutter with the rotary axis.
Rotary Axis Safety and Operating Tips
Always inspect the setup before operating the CNC machine. The workpiece and rotary module must be securely mounted, and the toolpath should have sufficient clearance around the chuck, tailstock and machine frame.
- Keep hands away from the rotating workpiece and cutting tool
- Wear suitable eye and hearing protection
- Use dust extraction where required
- Confirm that cables cannot catch on moving components
- Check the workpiece for secure clamping
- Use conservative settings for the first test cut
- Never leave an operating CNC router unattended
Shop CNC Rotary Axis Kits in South Africa
Browse CNC rotary-axis solutions at Create It 3D and expand the capabilities of your compatible TwoTrees TTC450 or TTC450 Pro CNC router. A fourth-axis module allows you to engrave and machine cylindrical objects with greater accuracy, repeatability and flexibility.
Shop with expert support and fast nationwide delivery across South Africa. Review the individual product specifications carefully to confirm compatibility, supported workpiece dimensions and installation requirements before ordering.
