| 95% Pre-assembled

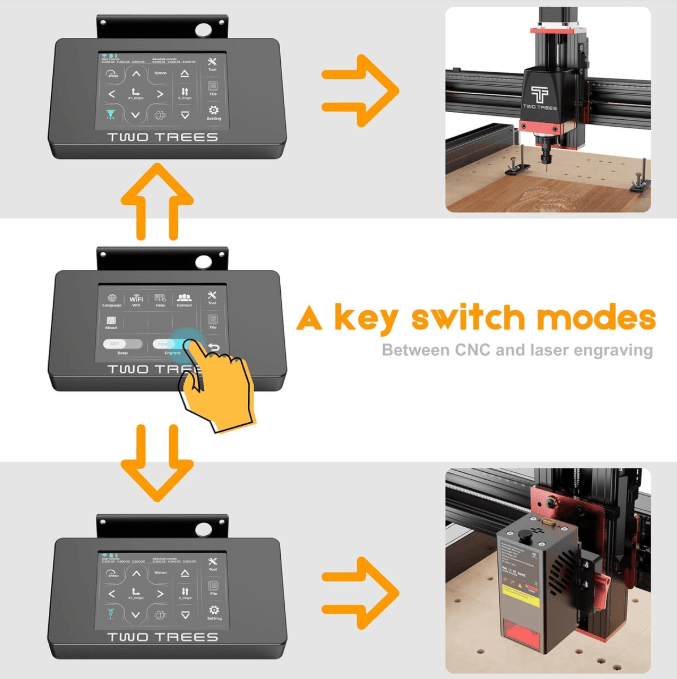

Smooth One-Click Switch
Cylindrical Engraving SolutionsEquipped with the fourth axis, CNC machines enable precise cylindrical engraving, allowing users to create unique artworks on various materials and enhancing design flexibility. Structure Upgrade:XYZ limit switches are fully upgraded to ensure safe operation, while the X-axis CNC plate is thickened to 8mm to enhance durability and stability. Compatibility UpgradeThe module of the Twotrees TTC450 PRO CNC Router Machine has been upgraded to compatible more kit. It supports not only the 4th-axis rotary module kit, 500W Spindle, but also the trimmer router,20W laser module. With these kits, your woodworking creations will be much more manageable! Assembly UpgradeMain parts are pre-assembled. A detailed assembly guide is included. We provide step by step assembly manual. It takes only 30 minutes to fully assemble. Structure UpgradeTwotrees TTC450 PRO CNC Router Machine is upgraded to an All-Aluminum CNC router machine, stronger and more durable than other models. The powerful body weighs 20 kg, greatly improving stability and accuracy. Controller UpgradeThe upgraded X-axis motor provides more powerful torque and ensures stable operation. Large Engraving AreaThe active working area is 18.10" x 18.10" x 3.14" (460 x 460 x 80mm). It is large enough for daily woodworking. Wide ApplicationThe TTC45 PRO CNC Wood router is compatible with GRBL software and supports systems such as windows XP/7/8/10 and Mac OS. It is suitable for engraving and carving stainless steel, wood, aluminum, brass, plexiglass, leather, PCB, MDF, acrylic, resin, nylon, carbon fiber, PCB, PVC, and more. Technical specificationsParameters: Specifications and Features
View all our products: Create it 3D Shop We're a proud supplier of Twotrees Laser Engravers in South Africa Follow us on Facebook Click here | Regular price
R 13,998.00
Sale price
R 13,998.00
Regular price
| Twotrees |

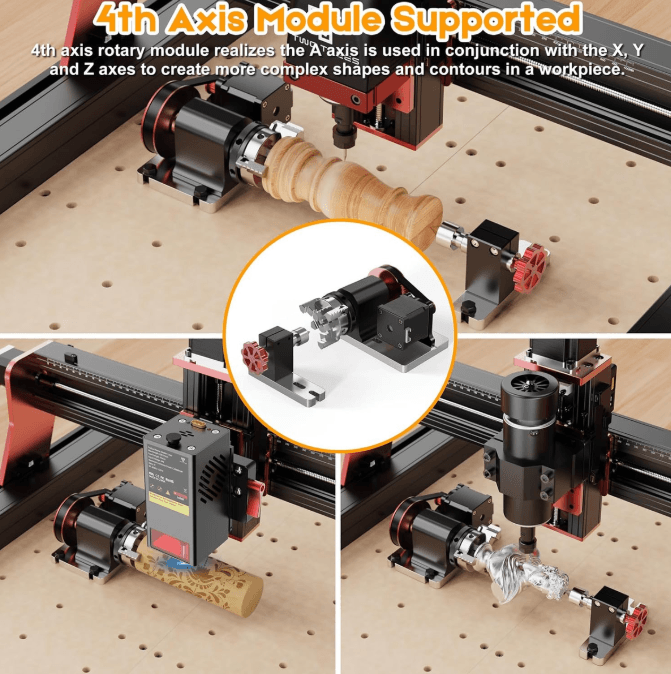

Equipped with the fourth axis, CNC machines enable precise cylindrical engraving, allowing users to create unique artworks on various materials and enhancing design flexibility.

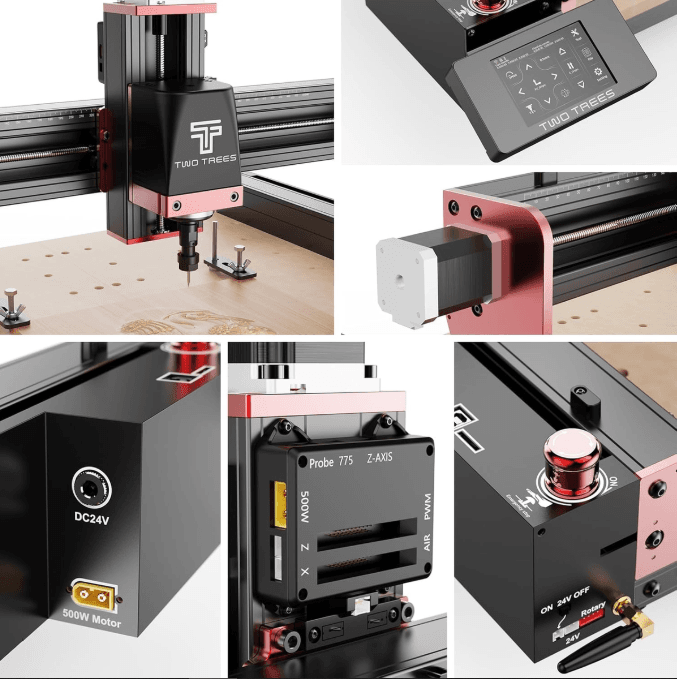

XYZ limit switches are fully upgraded to ensure safe operation, while the X-axis CNC plate is thickened to 8mm to enhance durability and stability.

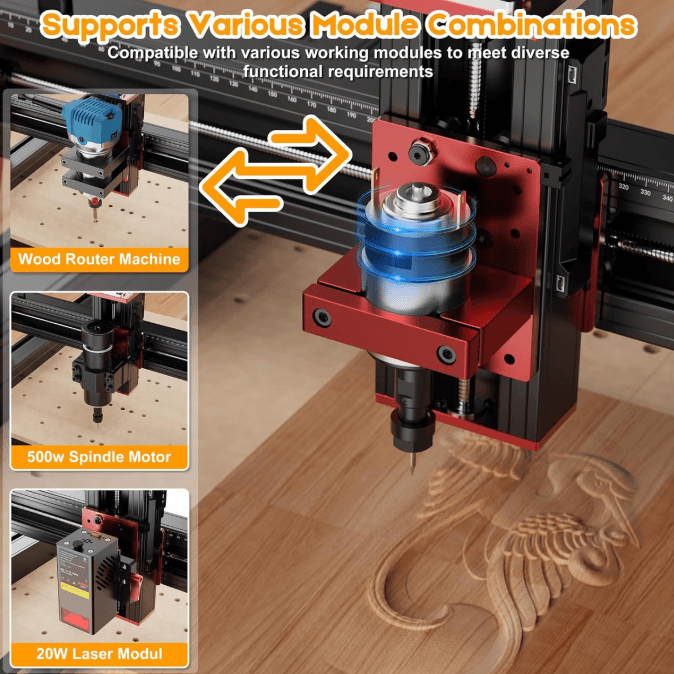

The module of the Twotrees TTC450 PRO CNC Router Machine has been upgraded to compatible more kit. It supports not only the 4th-axis rotary module kit, 500W Spindle, but also the trimmer router,20W laser module. With these kits, your woodworking creations will be much more manageable!

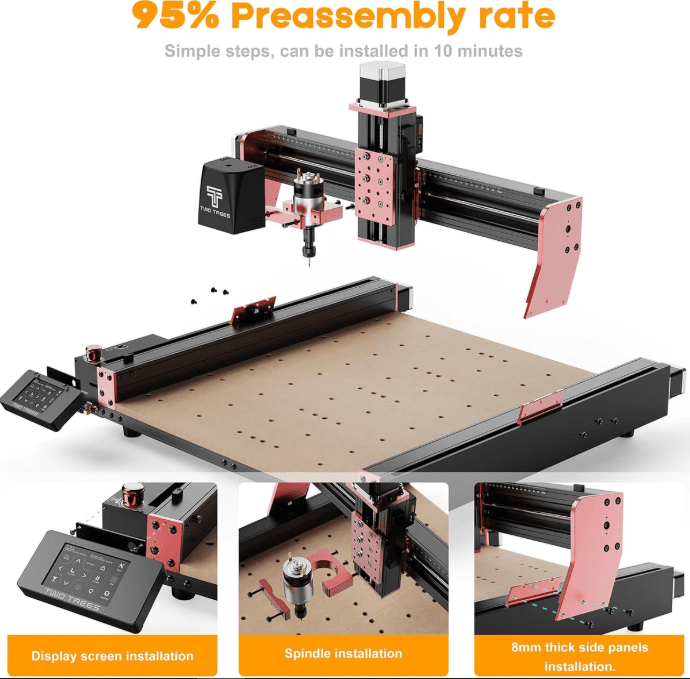

Main parts are pre-assembled. A detailed assembly guide is included. We provide step by step assembly manual. It takes only 30 minutes to fully assemble.

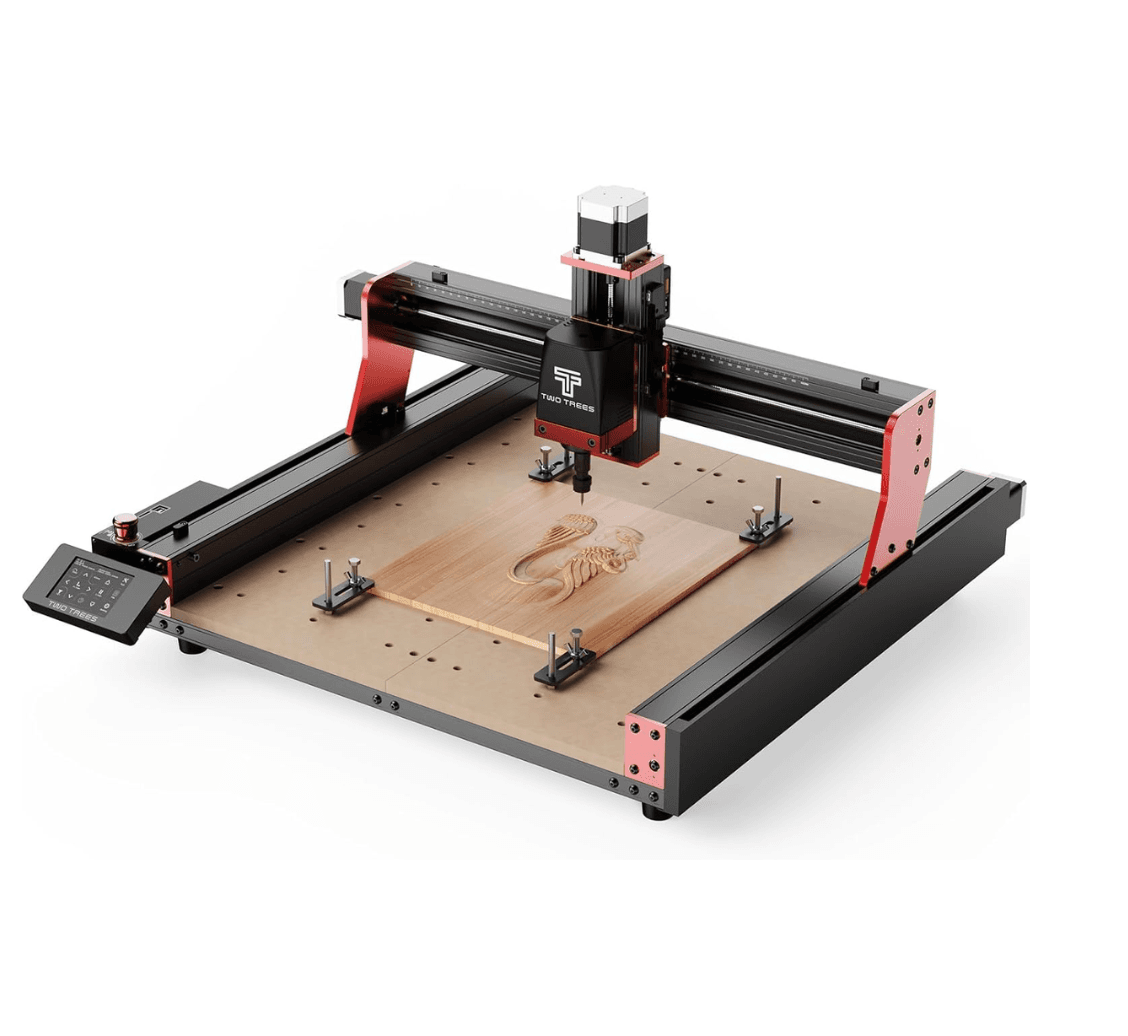

Twotrees TTC450 PRO CNC Router Machine is upgraded to an All-Aluminum CNC router machine, stronger and more durable than other models. The powerful body weighs 20 kg, greatly improving stability and accuracy.
The upgraded X-axis motor provides more powerful torque and ensures stable operation.

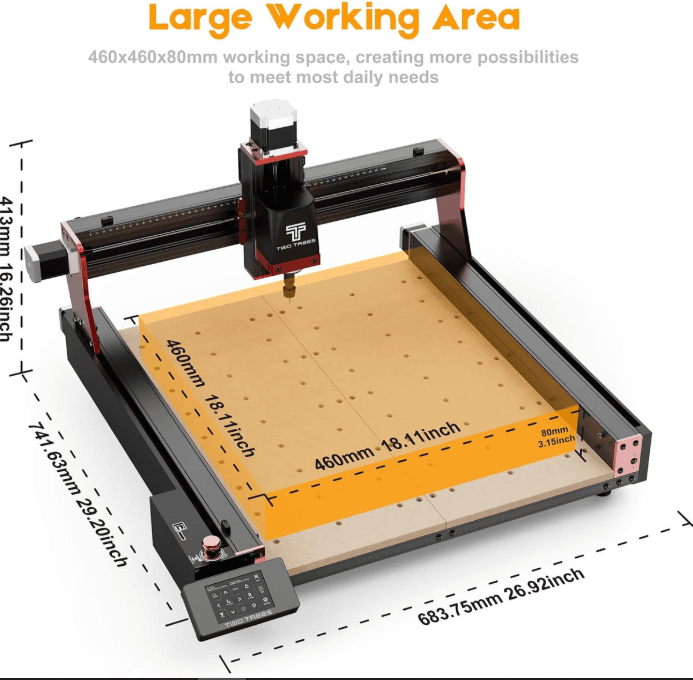

The active working area is 18.10" x 18.10" x 3.14" (460 x 460 x 80mm). It is large enough for daily woodworking.
The TTC45 PRO CNC Wood router is compatible with GRBL software and supports systems such as windows XP/7/8/10 and Mac OS. It is suitable for engraving and carving stainless steel, wood, aluminum, brass, plexiglass, leather, PCB, MDF, acrylic, resin, nylon, carbon fiber, PCB, PVC, and more.
Parameters: Specifications and Features
Name: CNC Woodworking Engraving Machine
Model: TTC450 Pro
Color: Red and Black
Frame structure: Sheet Metal + Aluminum Profile + Injection Molding + Stainless Steel
Product size: 742mmX689mm X 413mm
Working range: 460mmX460mmX80mm(18.1in*18.1in*3.14in)
Supported tool diameter: 0.5mm to 7mm(ER11 chuck)
Compatible engraving materials: Plywood/MDF/Solid Wood/Acrylic/Carbon Brazing/Aluminum/Copper/Stainless Steel
Net weight: 15.45KG
Gross weight: 20.6KG
Packing size: 760X740x218mm
Power supply mode: 24V3A Power Adapter
Switch power supply parameters: INPUT:100AC-240AC 50GHZ OUTPUT:DC24V/3A
Touch screen: 3.5-inch IPS capacitive touch color screen (480*320 resolution)
Firmware type: GRBL open source, supports both CNC and laser (no firmware required)
Support: TF storage card | USB port | Wifi-2.4G Hz
Not supported: Wifi-5G Hz | Bluetooth | Ethernet | USB flash drive
Engraving accuracy: 100±0.05mm
Maximum engraving: speed 800mm/min
Maximum acceleration: 1000mm/s²
Spindle motor: 775 brushed motor (standard)
Spindle speed: Depending on the installation, the spindle speed range is 8000-30000RPM
Tool size: According to ER11 collet inner hole size supports 0.5-6MM diameter tool
Engraving layer height: Non-metal 0.1mm-20mm Metal 0.1mm-0.2mm
Programming software: Artcam, Fusion360, EASEL , Carveco Maker, etc.
Support system: MacOS\Windows\Linux
Software language: Chinese\English\Spanish\German\French\Russian\Portuguese\Italian\Japanese\Korean\Turkish
Program support format: .nci\Gcode
Safety certification: CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC-Sdoc/FCC-ID
Optimal engraving environment temperature 0°-40°
