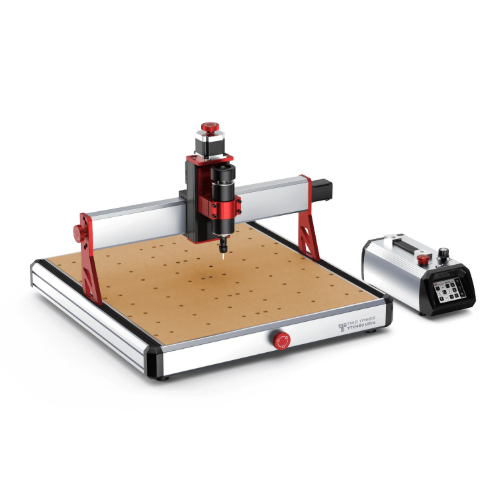

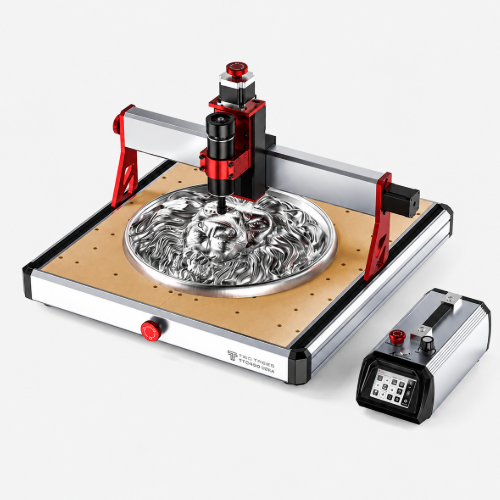

TwoTrees TTC450 Ultra CNC Router Machine

The TwoTrees TTC450 Ultra CNC Router Machine is a high-performance desktop CNC system designed for makers, workshops, small businesses and professionals who require a larger working area, increased spindle power and accurate machining capabilities. Built with an aluminium, stainless-steel and injection-moulded structure, the TTC450 Ultra combines a rigid mechanical platform with an integrated design for improved stability and cleaner cable management.

At the heart of the machine is a 500W spindle, supplied as standard, with spindle speeds ranging from approximately 8,000 to 30,000 RPM depending on installation. Combined with a generous 460 × 460 × 100mm working area, the machine can accommodate larger projects as well as batch production of smaller components.

The TTC450 Ultra uses 12H linear rails and provides X/Y positioning accuracy of 0.01mm and Z-axis positioning accuracy of 0.025mm. Maximum engraving speed reaches 3,000mm/min, providing a balance of productivity and precision for detailed routing, engraving and machining applications.

A built-in 3.5-inch IPS capacitive touchscreen provides convenient machine control with a 480 × 320 resolution interface. The machine runs on open-source GRBL firmware and supports both CNC and compatible laser workflows without requiring firmware flashing when switching supported configurations.

The TTC450 Ultra supports a broad range of materials, including plywood, MDF, solid wood, acrylic, carbon fibre, aluminium, copper and stainless steel. Its ER11 collet system supports tools from 0.5mm to 7mm, allowing users to select different cutting and engraving tools according to the application.

Compatible with Windows, macOS and Linux, the TTC450 Ultra works with popular CNC software including VCarve, Fusion 360, Easel, Carveco Maker, FlatCAM, Carbide3D and Vectric applications.

500W Spindle

The TTC450 Ultra comes standard with a 500W spindle, providing increased machining capability for demanding routing and engraving applications.

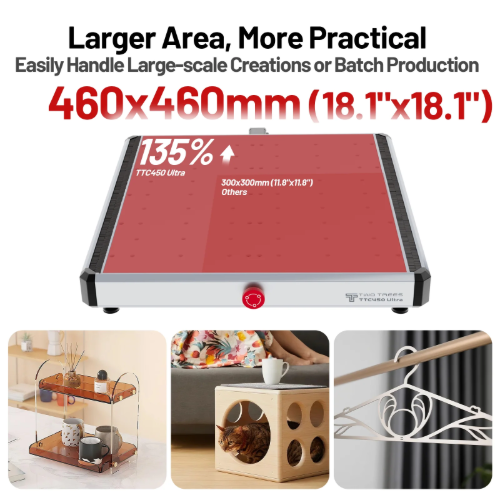

Large 460 × 460 × 100mm Working Area

A spacious working area allows users to process larger panels, signs and components or arrange multiple smaller items for batch production.

High-Precision Motion System

The machine offers:

•
  0.01mm X/Y positioning accuracy

•
  0.025mm Z-axis positioning accuracy

•
  Engraving accuracy rated at 100 ± 0.05mm

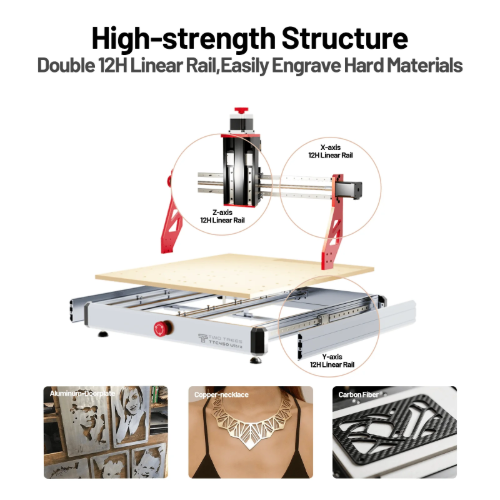

The 12H linear rail system is designed to provide increased rigidity and stable motion during machining.

Up to 3,000mm/min Engraving Speed

With a maximum engraving speed of 3,000mm/min, the TTC450 Ultra is designed to increase productivity while maintaining controlled machining performance.

3.5-Inch IPS Touchscreen

The integrated 3.5-inch capacitive touchscreen provides convenient access to machine controls through a 480 × 320 colour display.

ER11 Tooling System

The ER11 collet system supports tools ranging from 0.5mm to 7mm, giving users flexibility when selecting cutters and engraving bits.

GRBL Open-Source Control

GRBL firmware provides compatibility with a wide selection of established CNC software and workflows.

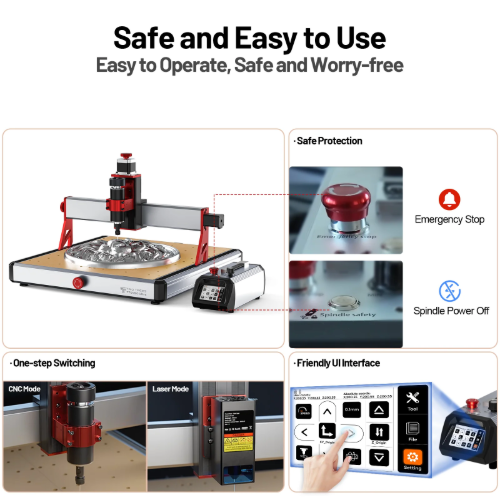

CNC and Laser Expansion Support

The machine's GRBL platform supports CNC and compatible laser configurations without requiring a firmware flash when switching supported modes.

Multi-Platform Software Compatibility

The TTC450 Ultra supports Windows, macOS and Linux, making it suitable for a variety of workshop environments.

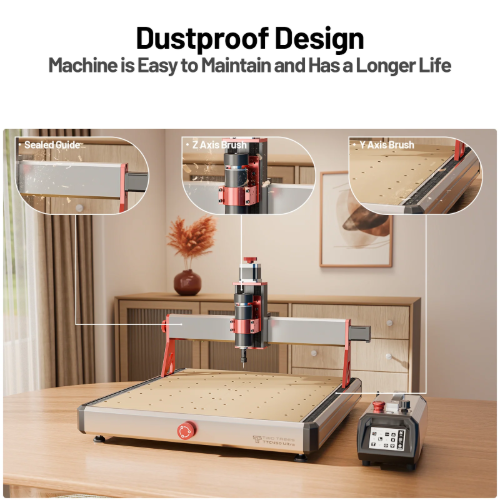

Integrated Machine Design

The integrated structure helps provide a cleaner installation with reduced exposed wiring compared with more fragmented DIY-style CNC platforms.

• Plywood, MDF and solid wood cutting and engraving

• Acrylic cutting, engraving and fabrication

• Carbon fibre machining

• Aluminium engraving and light machining

• Copper engraving and machining

• Stainless steel engraving and light machining

• CNC routing and carving

• Custom signage and branding

• Decorative panels and personalised products

• Furniture components and prototype development

• Jewellery-related projects

• Electronics enclosures and panels

• Wedding and event products

• Craft-fair and small business production

• Gift and merchandise manufacturing

• Batch production of smaller components

The standard TwoTrees TTC450 Ultra CNC Router Machine configuration includes the CNC machine platform and its standard 500W spindle system.

Depending on the selected bundle, optional configurations may also include:

•
  TwoTrees CNC Vacuum Cleaner Monster M2 Kit

•
  End mill set

•
  TC20 laser module

•
  VCarve Desktop software


Bundle contents vary according to the version purchased, so optional accessories should be confirmed before ordering.

Software Support

The TTC450 Ultra uses open-source GRBL firmware and supports popular CNC software including:

• VCarve

• Fusion 360

• Easel

• Carveco Maker

• FlatCAM

• Camlab

• MillMage

• Carbide3D

• Vectric software


Supported program formats include .nc and .Gcode.
