Beyond the Layer Lines:
Just How Accurate Are 3D Printed Functional Parts in the Real World?
When makers, engineers, and small-batch manufacturers first transition from printing decorative miniatures or tabletop toys to producing end-use mechanical components, a critical question immediately arises: Just how accurate are 3D printed functional parts?
It is no longer just about whether a print looks visually appealing on a desk; it is about whether a gear mesh will rotate smoothly without binding, whether a custom bearing housing will press-fit correctly, or whether a load-bearing bracket will maintain its structural integrity under operational stress. Achieving true precision in additive manufacturing requires looking past basic slicer defaults and understanding the intricate physics, material behaviors, and post-processing techniques that govern real-world tolerances.
The Numbers Game:
Understanding Typical Tolerances by Technology
Not all 3D printers are created equal, and the technology you choose fundamentally dictates your baseline dimensional accuracy.
Fused Deposition Modeling (FDM):
The workhorse of desktop and workshop environments. Well-calibrated FDM printers can routinely achieve dimensional tolerances of \pm 0.1\text{ mm} to \pm 0.2\text{ mm} (or roughly \pm 0.004 to \pm 0.008 inches). However, cheaper machines or poorly tuned belts can easily drift beyond \pm 0.5\text{ mm}, leading to loose assemblies.
Stereolithography (SLA) & Resin Printing:
Because resin printers use high-resolution UV light projectors or lasers to cure liquid photopolymers point-by-point or layer-by-layer, they excel at fine details. SLA can easily achieve tighter tolerances of \pm 0.05\text{ mm} to \pm 0.1\text{ mm}, making it the go-to choice for intricate mechanical linkages and dental or medical prototypes.
Selective Laser Sintering (SLS):
Industrial powder-bed fusion eliminates the need for support structures entirely because the surrounding unsintered powder supports the part. SLS parts offer exceptional isotropic accuracy and structural homogeneity, typically holding tolerances around \pm 0.1\text{ mm} across complex geometries.
The Invisible Culprits:
Shrinkage, Warping, and Thermal Distortion
Even if your CAD model is flawless, physical reality often intervenes during the printing process.
Thermal Contraction:
As molten thermoplastics (like ABS, ASA, Nylon, or even standard PLA) exit the nozzle and cool down, they naturally contract. If cooling is uneven across the build plate—often caused by ambient drafts or an unheated enclosure—internal stresses build up, causing warping, curling corners, and severe dimensional deviation along the X and Y axes.
Photopolymerization Shrinkage:
Resin printers face a different chemical hurdle. During UV curing, molecules pack tightly together, causing volumetric shrinkage. If exposure settings or resin formulas are unoptimized, parts can shrink or distort slightly as they post-cure under secondary UV light.
Calibration and Slicer Compensation:

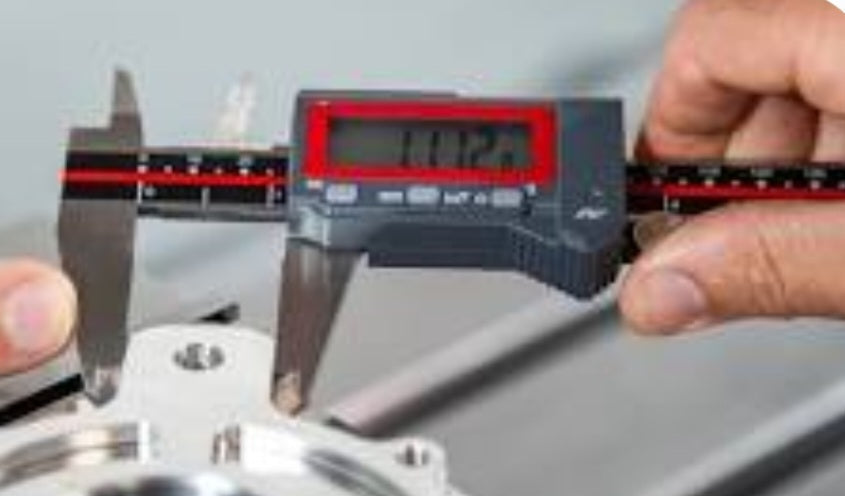

Professional operators don't just hit print and hope for the best. They print calibration cubes, measure deviations using digital calipers or micrometers, and apply precise horizontal expansion or percentage scaling compensations directly within their slicer software.
Design for Additive Manufacturing (DfAM):
Bridging CAD and Reality
You cannot simply take a part engineered for traditional CNC milling or injection molding and send it straight to a 3D printer expecting a drop-in mechanical fit. Designing functional parts requires respecting the medium:
The Hole-Sizing Phenomenon:
Printed holes almost always turn out smaller than specified in CAD. This happens because hot plastic sags slightly over the top of unsupported circular overhangs, and radial thermal contraction pulls the perimeter inward. Smart designers deliberately undersize holes so they can be post-machined with a reamer or tapped for metal threaded inserts.
Incorporating Clearance Gaps:
For functional assemblies featuring moving parts—such as print-in-place hinges, snap-fits, or sliding dovetail tracks—incorporating a clearance gap of at least 0.2\text{ mm} to 0.3\text{ mm} prevents "friction welding" between mating surfaces and ensures smooth movement right off the build plate.
Embracing the Future of Precision Additive Manufacturing
As additive manufacturing transitions from a novelty prototyping method into a primary production-grade technology, the pursuit of absolute dimensional accuracy is entering an entirely new era. With the rapid integration of artificial intelligence-driven inspection tools, real-time closed-loop sensor monitoring, and hybrid manufacturing platforms that seamlessly merge 3D printing with CNC milling, the industry has fundamentally shifted from asking whether a part can be printed to guaranteeing repeatable, certified precision at scale. By combining smart digital workflows, modern high-performance materials, and rigorous tolerance management, makers and engineers can confidently push the boundaries of what functional 3D-printed components can achieve.
