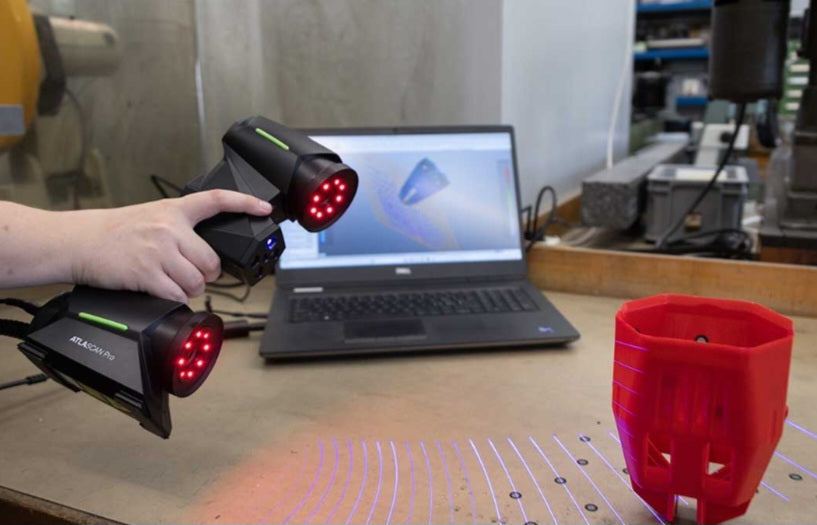

The Tolerances Guide for Digital Manufacturing
When diving into 3D scanning, it is easy to fall into the trap of chasing maximum precision. Manufacturers often assume they always need sub-millimeter metrology-grade accuracy for every single job.
However, over-specifying your scanning tolerance is a fast way to blow up project costs, inflate file sizes, and waste hours on unnecessary data processing. Different manufacturing applications demand completely different levels of accuracy. Knowing what your project actually requires saves time, equipment wear, and capital.
Let’s break down the accuracy tiers in 3D scanning and how to choose the right tolerance for your workshop workflow in South Africa.
The Three Tiers of 3D Scanning Accuracy
To determine what your project needs, you first need to understand the typical accuracy brackets found in modern digital manufacturing:
High-Precision Metrology Grade (Sub-0.05mm to 0.1mm):
What it is:
The gold standard for industrial inspection, aerospace, and medical engineering.
Best for:
Quality control of machined parts, turbine blades, injection molds, and critical-fit mechanical components where a fraction of a millimeter means a failed assembly.
General Engineering Grade (0.1mm to 0.5mm):
What it is:
The versatile workhorse bracket for standard reverse engineering and custom fabrication.
Best for:
Recreating broken brackets, automotive body panels, custom enclosures, and general mechanical parts where minor post-processing fit adjustments are acceptable.
Visual / Creative Grade (0.5mm to 2mm+):
What it is:
Perfect for organic shapes, artistic sculptures, heritage archiving, and visual effects assets.
Best for:
Woodcarvings, statues, digital sculptures, and gaming assets where exact mechanical fitment is irrelevant, but visual fidelity and texture mapping are paramount.
Factors to Weigh Before Setting Your Tolerance Target
Before firing up your scanner or quoting a client, evaluate these four key criteria:
The Assembly Interface:
Does this part interface directly with other rigid components? If a 3D-printed or CNC-machined replacement part has to bolt down onto an existing motor block or structural chassis, you need tight, general engineering-grade tolerances (0.1mm–0.2mm). If it is a standalone decorative piece, looser tolerances are completely fine.
Material Shrinkage and Post-Processing:
Remember that your downstream manufacturing method matters. If you plan to 3D print the scanned file via FDM or cast it in metal, the material's natural thermal shrinkage will often introduce variances larger than a ultra-fine scanner can even detect. Matching your scan accuracy to your output manufacturing tolerance prevents wasted effort.
File Size and Processing Bottlenecks:
Higher accuracy means denser point clouds and massive polygon counts. Pushing for 0.02mm accuracy on a large object creates multi-gigabyte mesh files that choke CAD software and slow down your workstation.
Project Budget and Quotation Pricing:
In a commercial environment, time is money. Metrology-grade scanning requires expensive hardware, calibration setups, and rigorous post-processing time. Charging a client for a sub-millimeter inspection report when they only need a general-use CAD model unnecessarily inflates your project quotes in Rands.
Matching Accuracy to Your Output Application
To finalize your approach, look at your final deliverable:
Reverse Engineering for CNC Machining / Laser Cutting: Aim for 0.1mm to 0.2mm tolerance to ensure your generated CAD sketches line up cleanly with standard fabrication limits.
E-Commerce Visuals / 3D Rendering: Aim for 0.5mm to 1mm+; focus your energy on clean texture mapping and lighting rather than microscopic surface coordinates.
Quality Assurance Inspection:
Stick strictly to metrology-grade equipment certified to handle exact deviation mapping against original engineering drawings.
The Bottom Line: Precision with Purpose
Accuracy is not about getting the smallest possible number on your software readout; it is about matching your capture tolerance to the functional reality of the physical part. By defining your project's true requirements upfront, you streamline your workflow, protect your hardware, and deliver better results for your manufacturing clients.
Environmental factors also play a critical role in maintaining dimensional fidelity during high-precision capture sessions, as ambient temperature fluctuations and mechanical vibrations in the workshop can induce micro-expansion in metal parts or introduce motion artifacts into sensitive optical sensors.
