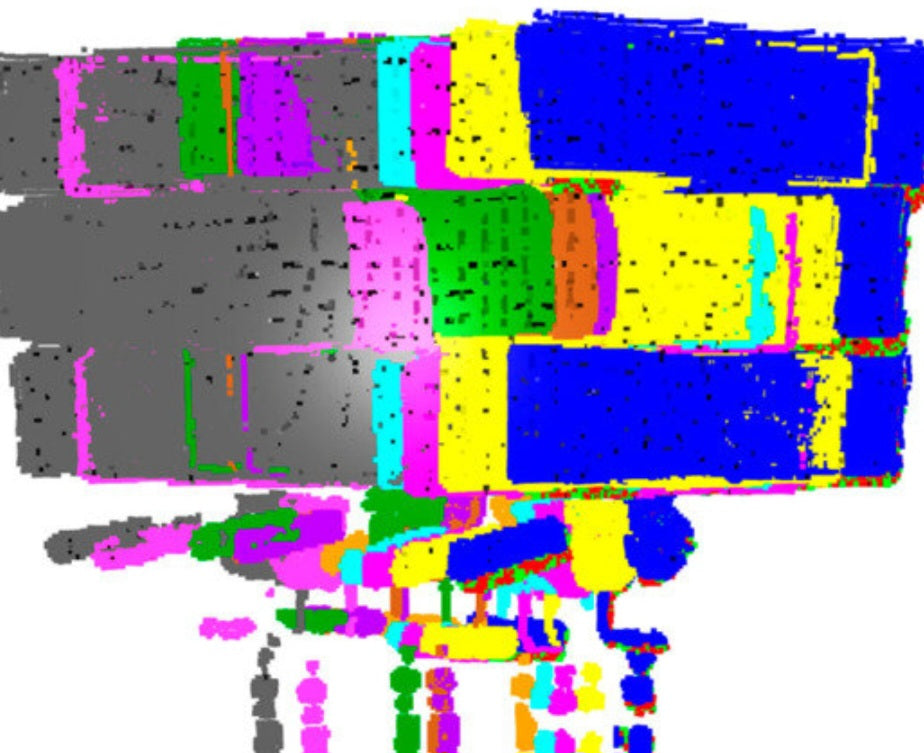

Decoding the Real Difference in Digital Metrology
When stepping into the world of 3D scanning, reverse engineering, and quality control inspection, it is easy to assume that higher numbers across the board always mean a better scan.
Manufacturers and designers looking to invest in optical metrology equipment frequently encounter two technical specifications that sound interchangeable: accuracy and resolution.
In practice, however, these terms measure completely different aspects of how a scanner captures the physical world. Conflating them can lead to costly purchasing mistakes, flawed inspection reports, and misaligned expectations when comparing hardware performance. Let us demystify what accuracy and resolution truly mean, how they interact, and why both matter to your manufacturing workflow.
Defining Resolution:
The Density of Detail
In the context of 3D scanning, resolution refers to the distance between individual data points (or vertices) captured on the surface of an object—often referred to as point spacing or grid resolution.
The Pixel Analogy:
Think of resolution much like megapixels on a digital camera. A higher resolution means the scanner packs more data points into a smaller area, creating a dense, fine mesh that can capture sharp edges, subtle textures, and intricate surface features.
Catching the Fine Nuances:
If you are scanning a complex turbine blade, organic jewelry, or an engine block with tight cooling fins, high resolution ensures that small geometrical features do not get blurred out or missed entirely.
The Catch (Data Bloat):
Higher resolution generates massive file sizes. Processing millions of redundant triangles can slow down your CAD software, require heavier computing power, and increase cleanup time without necessarily making the overall measurements any more mathematically correct.
Defining Accuracy:
The Truthfulness of Measurement
Accuracy measures how close a scanned measurement is to the true, absolute physical dimension of the object in the real world. If a machined block of steel measures exactly 100 mm with a certified laboratory caliper, how close does your 3D scan say it is?
Trueness to Reality:
Accuracy is about spatial fidelity and freedom from systematic error or distortion. A scanner with high accuracy ensures that a part scanned at one end of the bed retains its true scale and geometric positioning relative to the other end.
Error and Deviation:
Accuracy is typically expressed in micrometers (e.g., plus or minus 0.02 mm). It accounts for calibration drift, optical distortion, environmental variables, and tracking stability.
Precision vs. Accuracy:
A scanner can be highly precise—meaning it repeatedly captures the exact same erroneous shape over and over—without being accurate. True metrology requires both high repeatability and strict alignment to real-world dimensions.
The Core Contrast:
Sharp Pictures vs. Trustworthy Numbers
To fully grasp the difference, consider how they complement each other during a reverse-engineering or inspection task:
High Resolution, Low Accuracy:
Imagine taking a high-definition photograph with a distorted wide-angle lens. You can see every tiny scratch, pore, and contour with stunning clarity (high resolution), but straight lines appear curved, and actual distances measured across the image are completely warped (low accuracy).
High Accuracy, Low Resolution:
Imagine a simple set of digital calipers. They can tell you the exact distance between two points with extreme mathematical certainty (high accuracy), but they cannot give you a detailed 3D contour map of a complex, organic sculpture (low resolution).
The Industrial Sweet Spot:
Quality control inspection requires high accuracy to verify that parts pass strict tolerances. Artistic archiving and reverse engineering often lean heavily on high resolution to capture intricate surface aesthetics. Industrial-grade metrology scanners manage to strike a balance, offering both high-density point clouds and rigorous dimensional certification.
The Cumulative Toll:
Why Compromising on Resolution and Accuracy Compromises Quality Control
When companies rush through the data acquisition phase of product development or settle for low-tier optical equipment to cut initial overhead costs, the compounding errors cascade rapidly down the entire manufacturing pipeline. A scan burdened with cumulative systematic distortion or insufficient point cloud fidelity creates a deceptive foundation for downstream CAD reconstruction. When toolpaths generated from flawed mesh data are fed directly into a CNC milling machine or an additive manufacturing build processor, the resulting physical components fail inspection, bind up during final assembly, and introduce catastrophic dimensional drift that renders expensive production runs entirely unusable.
