The Prep Work Nobody Talks About
When people first invest in a 3D scanner or send their first part off for digital capture, they often harbor a magical expectation: you point the sensor at the object, press a button, and a pristine, ready-to-print CAD model instantly materializes on your screen. Unfortunately, reality on the shop floor tells a very different story.
If you take an object straight off the machine—whether it is gleaming polished aluminum, dark black plastic, or translucent resin—and point a structured-light or laser scanner at it without preparation, you are almost guaranteed to fail. You will end up with floating point clouds, jagged holes in your digital mesh, and phantom geometry that looks like a glitchy modern art sculpture rather than a precise engineering component. Mastering the art of pre-scan preparation is the secret differentiator between amateur frustration and professional, watertight metrology data.
The Optical Enemy:
Understanding Surface Reflectivity and Translucency
Before you ever touch a spray can or wipe down a part, it helps to understand why scanners struggle with certain materials. Most optical scanners project light patterns (lasers or structured light) onto an object and measure how that light reflects back into the camera lenses.
The Mirror Trap (Shiny Metals):
Highly polished chrome, bare aluminum, or glossy injection-molded parts act like mirrors. Instead of scattering the scanner's light back to the sensor, they bounce it off at random angles, blinding the cameras or returning zero data.
The Black Hole Effect (Dark Surfaces):
Matte black or very dark carbon fiber absorbs light rather than reflecting it. The scanner's sensors struggle to register enough returning photons to calculate a depth measurement, resulting in missing patches.
The Ghosting Phenomenon (Translucent & Glass Parts):
Clear acrylic, glass, or translucent 3D-printing resins let light pass right through them. The scanner gets confused by reflections bouncing off both the front and the back surfaces simultaneously, creating a distorted, floating double-image inside your software.
Your Secret Weapon:
Anti-Glare Sprays and Powders
To conquer difficult surfaces, professional metrologists rely on specialized surface treatments. You cannot just grab any household spray from the garage, however; using the wrong substance can ruin a delicate finish or warp tight dimensional tolerances.
Temporary Scans Sprays:

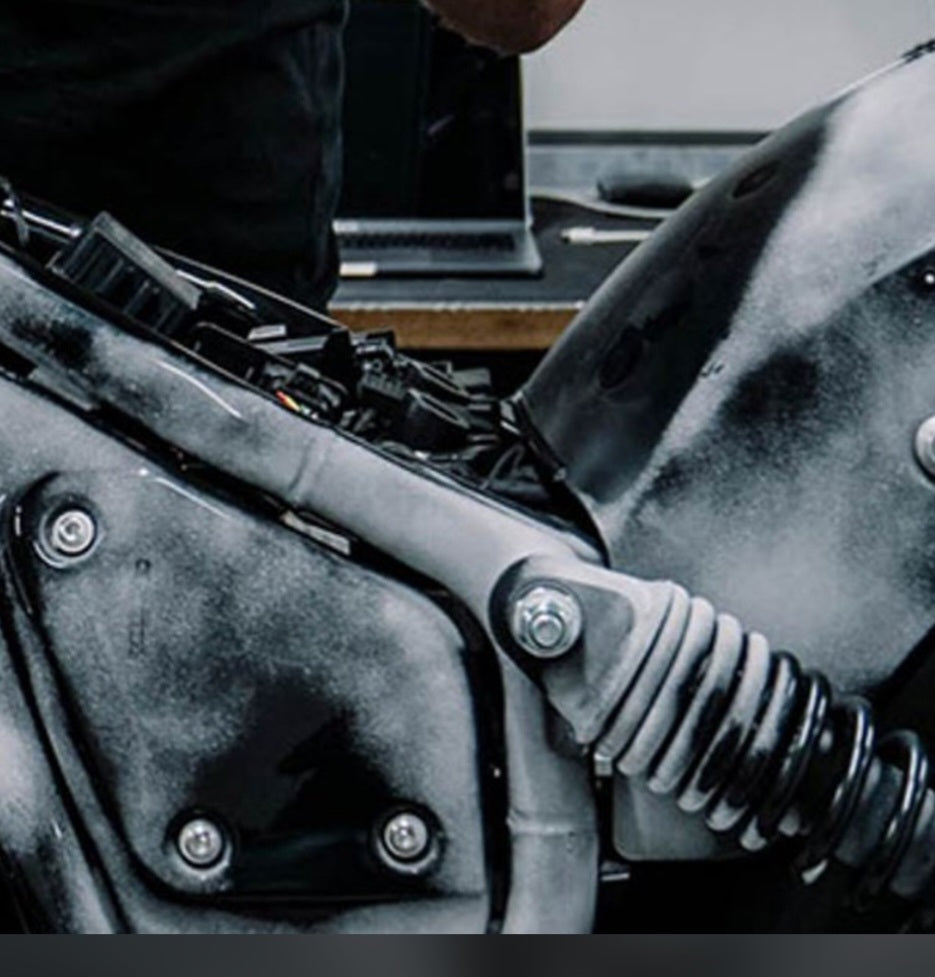

Specially formulated anti-glare powders (such as AESUB or similar vanishing sprays) create an ultra-thin, matte white or grey coating that gives the scanner's optical sensors something uniform to read.
The Magic of Sublimation:
Many modern scanning sprays are self-volatilizing—meaning they evaporate completely on their own after a few hours without leaving any oily residue or requiring harsh chemical cleanups. This is a lifesaver when scanning expensive engine blocks, aerospace parts, or customer components that must remain pristine.
Alternative Field Fixes:
In a pinch, makers sometimes use temporary chalk sprays or water-soluble dry shampoos, though care must be taken to ensure the coating layer remains microscopically thin so it does not add false thickness to tight engineering tolerances.
Cleaning and Degreasing:
Banishing Fingerprints and Dust
It sounds simple, but microscopic surface contamination can single-handedly ruin a high-resolution scan.
The Oil Hazard:
Natural oils from human fingerprints leave glossy, semi-reflective smears across matte surfaces. When scanned with a high-resolution laser, those fingerprints will literally show up as raised topological bumps in your digital mesh.
The Dust Factor:
Loose dust particles, metal shavings from CNC machining, or plastic burrs can cast tiny shadows or create artificial peaks on the surface.
The Proper Wipe-Down Routine:
Always clean your components thoroughly using isopropyl alcohol (IPA) and a lint-free microfiber cloth before scanning. Ensure the part is completely dry and free of static charge, which loves to attract floating dust particles right as you begin your capture session.
Managing Fixtures and Part Stability
An object cannot move even a fraction of a millimeter while you are scanning it. If the part shifts halfway through a handheld scan, your stitching algorithm will fail, resulting in double-vision geometries and misaligned point clouds.
Rigid Clamping:
Secure your part using a stable rotary table, a fixture vise, or specialized magnetic holding pins. If you are using turntable automation, ensure the table rotates smoothly without sudden jerks or vibrations.
The Multi-Angle Challenge:
Complex objects have hidden undercuts that a single line-of-sight cannot reach. Plan your staging so you can either reposition the part multiple times using alignment markers (targets) or safely tilt it without losing your tracking lock.
Strategic Target Placement:
Guiding the Software
When scanning smooth, uniform, or featureless objects—like a blank cylindrical pipe or a flat car door panel—the scanning software can easily lose its tracking bearings because there are no unique geometric "landmarks" for it to latch onto.
The Power of Reference Markers:
Applying adhesive retro-reflective dots (targets) directly onto the object or around its staging fixture gives the scanner fixed spatial reference points.
Global Positioning:
The software tracks how these dots move relative to one another in 3D space, ensuring that even if you flip the part over or scan it in multiple stages, the alignment stays mathematically locked in place.
The Cumulative Toll:
Why Skipping Prep Work Corrupts Downstream Quality Control
Attempting to rush past the preparation phase to save a few minutes is a false economy that almost always backfires downstream. When a scan is captured off a reflective, dirty, or unstable surface, the resulting point cloud is laced with hidden noise, dropouts, and systematic warping. Feeding that compromised mesh into CAD reverse-engineering software or quality-inspection platforms forces designers to guess missing geometry or build toolpaths on top of corrupted data.
Ultimately, failing to prep your part properly translates directly into failed test fits, rejected quality control audits, and expensive project delays that far outweigh the time spent doing it right the first time.
