Can You Scan a Dashboard? Precision Solutions for Interior Customization
If you are a car builder or a custom shop, you know the interior is where the aesthetic vision really comes to life.
But when you’re looking to install modern gauges, integrated touchscreens, or custom trim into an existing vehicle, you quickly run into the "dashboard dilemma": how do you design a custom component that perfectly matches the complex, curved, and cluttered geometry of an existing dashboard?
The question often arises: "Can you actually scan a dashboard?"
The answer is a resounding yes—and it is arguably one of the most transformative applications for 3D scanning in automotive customization.
The Complexities of Interior Geometry
Scanning a dashboard is significantly more challenging than scanning an exterior body panel. You aren’t just dealing with smooth curves; you are dealing with:
Deep Cavities and Vents:
Recessed areas, glove compartments, and HVAC ducts that are difficult for standard sensors to reach.
Complex Material Finishes:
Dashboards are often textured, matte, or contain soft-touch materials that can be difficult to capture without the right light-frequency management.
Proximity Constraints:
Working inside a vehicle cabin means limited room to move the scanner, making it essential to use equipment that can handle short-throw distances while maintaining high accuracy.
How We Unlock Interior Customization
Professional 3D scanning services allow you to bypass manual measurements entirely, providing a perfect "digital twin" of your interior. This opens up several high-end possibilities:
Integrated Modernization:
Want to fit a new infotainment screen or a digital gauge cluster into a classic dash? We scan the dash and the new hardware, allowing you to design a perfectly fitting bezel or mounting plate in CAD before you ever cut a single piece of material.
Perfect Ergonomic Placement:
Because we capture the full 3D environment, you can use the scan data to optimize the placement of switches, dials, and custom controls for better reach and visibility.
Custom Trim and Panels:
Designing aftermarket inserts, trim, or roll-cage clearance panels becomes a simple CAD exercise when you have the exact reference geometry of the entire dash assembly.
The Workflow: From Cabin to CAD
- Preparation: We ensure the interior is clear and the surfaces are prepped to be scanned.

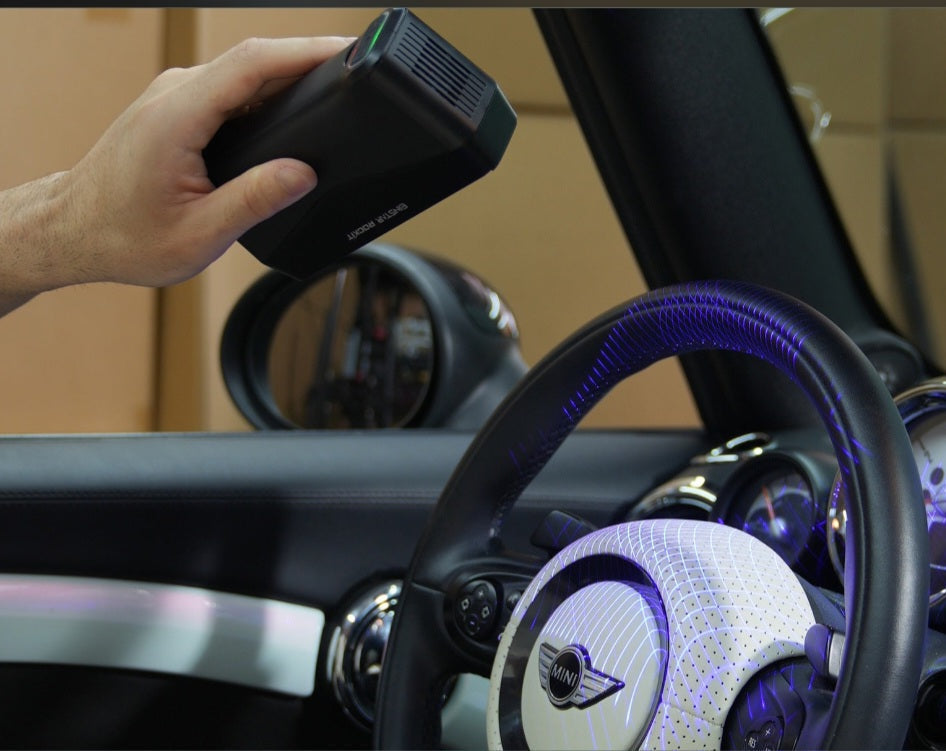

2. Strategic Capture: Using handheld, high-resolution scanners, we capture the dashboard in its entirety, including all intricate recesses, vents, and curves.
3. Parametric Modeling: We import the raw data into CAD software. This provides a "master" file that serves as the foundation for all your custom design work.
4. Fitment Assurance: Before you manufacture, we can virtually "install" your custom designs into the digital model to ensure there are no collisions with existing structures.
Stop measuring by hand and start designing with confidence.
Scanning a dashboard removes the guesswork from interior fabrication, allowing you to create custom components that look and feel like they came from the factory.
If you are planning a high-end interior overhaul, don't let the complexity of the dashboard hold your project back—professional 3D scanning provides the precision data you need to turn your interior concepts into a reality.
