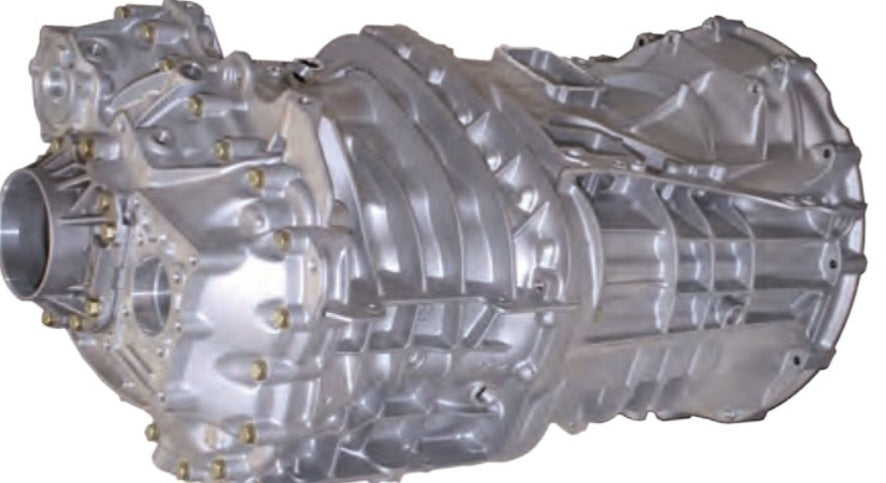

Can You Scan a Gearbox? Precision Engineering for Drivetrain Components
In the world of high-performance automotive building, the gearbox is the heart of power delivery.
Whether you are adapting an engine to a different transmission, designing custom bell housings, or reverse-engineering worn-out internal gears for a restoration project, you are dealing with critical tolerances.
When you need a perfect interface between components, you need precision—and that is where 3D scanning comes in.
The question we hear often is: "Can you scan a gearbox?"
The answer is yes, but it requires a specialized approach due to the unique nature of these mechanical assemblies.
The Challenges of Scanning Transmission Components
A gearbox is not just a solid object; it is a complex assembly of shafts, splines, housing cavities, and intricate gear teeth. These present specific challenges:
Deep Geometries:
Scanning deep inside a gearbox housing requires specialized hardware that can navigate tight spaces while maintaining accuracy.
Reflective Surfaces:
Many gearbox components are made of hardened, polished steel. We utilize professional-grade techniques to handle these surfaces, ensuring the scanner picks up the geometry rather than the glare.
Micro-Tolerances:
Gearbox components are often machined to tolerances within a few microns. Our scanning process is optimized to capture this level of detail, which is essential for ensuring that custom adapters or replacement gears fit exactly as the original intended.
How We Unlock Transmission Customization
By 3D scanning your gearbox, we provide you with a high-fidelity digital reference that enables:
Adapter Plate Design:
If you are mating a non-native engine to a gearbox, we scan both the engine block and the transmission bell housing. This allows us to design a perfect adapter plate in CAD, ensuring the input shaft and crank centerlines align perfectly.
Internal Component Reverse Engineering:
If a specific gear or shaft is no longer manufactured, we can scan the damaged part, reconstruct its original geometry in CAD, and prepare it for new manufacturing processes like CNC machining or additive manufacturing.
Casing Modification:
Need to cut or adapt a gearbox casing for a custom chassis fitment? We provide the exact spatial data to ensure your modifications don't interfere with internal bearings or oil galleries.
Our Professional Workflow
- Preparation: We clean and, if necessary, treat the gearbox surfaces to ensure optimal scan data capture.
2. High-Resolution Capture: Using specialized structured-light scanners, we capture the internal and external geometry, focusing on critical mounting points, dowel pin locations, and shaft centerlines.
3. Reverse Engineering: We convert the point cloud into a clean, parametric CAD model. This file serves as your "source of truth" for all subsequent design and engineering work.
4. Virtual Verification: We simulate the assembly in CAD to ensure that all clearances are accounted for before any material is cut.
When dealing with drivetrain components, there is no room for "close enough." 3D scanning provides the professional-grade accuracy required to handle complex gearbox modifications with total confidence.
Whether you are building a custom race car or restoring a classic, we have the expertise to digitize your gearbox and provide the CAD data needed for your engineering success.
