Every time you generate a toolpath in your CAM software, you are forced to make a choice before you can ever export your G-code: Climb cutting or Conventional cutting?
For many beginners, this setting is left on whatever default the software selects. But this single toggle switch fundamentally changes the way your spinning end mill interacts with the stock, drastically impacting your surface finish, tool life, machine stability, and part accuracy.
Choosing the wrong direction can be the difference between a glass-smooth finish and a ruined workpiece thrown across your shop. Let's break down the mechanics, pros, and cons of climb cutting versus conventional cutting so you know exactly when to use each strategy.

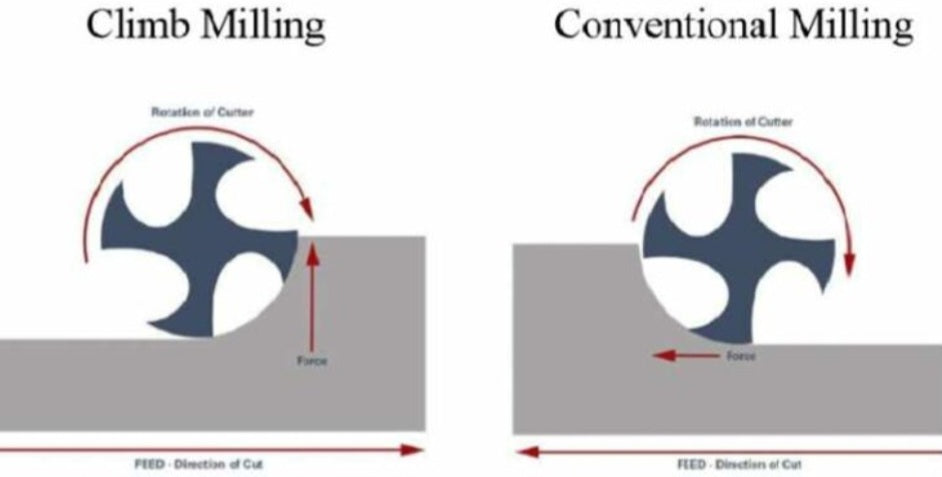

The Physics: How the Bit Meets the Material
To understand the difference, imagine looking down at your spindle from above. Your bit spins clockwise. As the gantry moves the tool forward through the material, the flutes can contact the stock in two entirely different ways:
Conventional Cutting (Up Milling):
The cutting edge meets the material at the bottom of the cut and rotates upward against the direction of the feed. The flute starts taking a chip that is zero thickness and gradually increases to maximum thickness before exiting the cut.
Climb Cutting (Down Milling):
The cutting edge meets the material at the top of the cut, rotating in the same direction as the feed. The flute takes a bite at maximum chip thickness instantly, which then tapers down to zero as the bit spins out.
Think of conventional cutting like pushing a wheelbarrow uphill—it fights the movement. Climb cutting is like the wheelbarrow grabbing the hill and pulling itself forward.
Conventional Cutting: The Safe, Reliable Workhorse
Conventional cutting is the traditional method used in manual milling for over a century. Because the cutting forces push back against the movement of the machine, it provides a predictable, steady resistance.
The Advantages:
Machine Control:
Because the cutting tool pushes back against the gantry, it naturally takes up play and backlash in your lead screws or belts. On lighter, hobby-grade CNC routers, this prevents the bit from grabbing the material and violently pulling the machine along.
Less Tool Deflection:
The tool enters thin material smoothly without grabbing, reducing the chance of snapping delicate, small-diameter end mills.
Safer on Manual/Handheld Tools:
If you have ever used a handheld router, conventional cutting is what stops the tool from flying out of your hands.
The Disadvantages:
Friction and Heat:
Because the tooth starts at zero chip thickness, it rubs against the material for a fraction of a millisecond before it actually starts slicing. This friction builds up extreme heat, dulling your cutting edges faster and potentially scorching wood or melting plastics.
Poorer Surface Finish:
The upward motion of the flute tends to lift fibers, leaving a rougher surface finish on hardwoods and laminates.
Climb Cutting: The Secret to Mirror Finishes
Climb cutting gets its name because the bit literally tries to "climb" up onto the workpiece as it cuts. In modern CNC machining, it is widely considered the preferred method for getting pristine surface quality—provided your machine is rigid enough to handle it.
The Advantages:
Superior Surface Finish:
Because the tooth strikes the material at full thickness and exits cleanly at zero, it cleanly shears fibers away without rubbing. This creates far less friction, reduces heat, and leaves a silky-smooth edge with minimal tear-out.
Extended Tool Life:
Less rubbing means less thermal shock on your solid carbide bits, keeping your end mills sharp for significantly longer.
Chip Evacuation:
Chips are flung out behind the path of the tool, preventing the cutter from re-cutting its own debris and creating a cleaner kerf.
The Disadvantages:
Requires High Machine Rigidity:
If your CNC router has slop, loose belts, or weak stepper motors, climb cutting can grab the material and pull the gantry forward (a dangerous phenomenon known as "climb grabbing"). This results in severe chatter, gouging, or broken bits.
Deflection on
Roughing Passes: Under heavy depth-of-cut loads, climb cutting forces can push the bit away from the part, leading to slight dimensional inaccuracies if you don't run a light finishing pass afterward.
The Pro Strategy: Combine Both Methods
You don't have to choose just one strategy for your entire project. In fact, professional machinists almost always use a hybrid approach in their CAM setups:
Roughing Pass (Conventional):
Clear out the bulk of your material using conventional cutting. This keeps cutting forces stable, protects a lighter machine frame from grabbing, and clears deep pockets safely.
Finishing Pass (Climb):
Leave a tiny margin of material (around 0.2\text{ mm} to 0.5\text{ mm}) during your roughing passes. Then, run a final, shallow pass using climb cutting at full depth. Because the bit is taking away such a thin sliver of stock, cutting forces are minimal, eliminating grab while delivering a glass-smooth surface.
Understanding the dynamic between climb and conventional cutting turns CAM programming from a guessing game into a fine-tuned craft. Use conventional cutting when safety, machine stability, and heavy material removal are your priorities. Switch to climb cutting when you need long tool life and a flawless, professional finish.
