Rough Edges, Ruined Finishes: Why Your CNC Router is Leaving Messy Cuts (and How to Fix Them)
You unclamp your latest project from the spoilboard, expecting a crystal-clear, satin-smooth edge straight off the machine. Instead, you run your finger along the side and are met with splintered wood fibers, fuzzy top edges, chattered ripples, or a jagged, melted plastic crust.
There is few things more frustrating in digital manufacturing than spending hours designing a flawless file, only for a sloppy edge to ruin the final piece.
Rough edges are the classic symptom that something in your setup is out of balance. Whether you are cutting cabinet-grade plywood, solid hardwood, MDF, or engineering plastics, poor edge quality almost always boils down to a few common culprits. Let’s dive into why your CNC router is producing rough edges and how you can dial in your machine for glass-smooth finishes every single time.

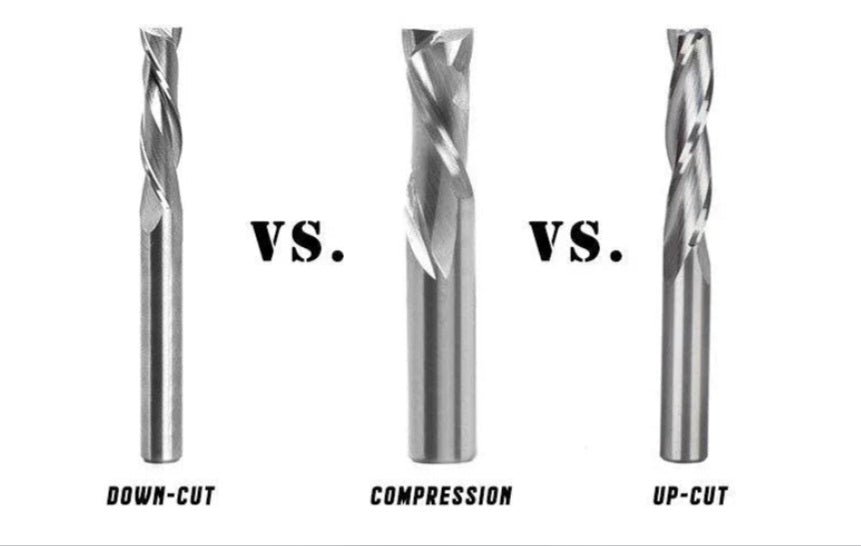

The Wrong Tool for the Job: Up-Cut vs. Down-Cut Bits
One of the most frequent reasons for messy top or bottom edges comes down to the geometry of your rotating end mill.
The Problem with Up-Cut Bits:
An up-cut spiral bit ejects chips upward out of the kerf. While this is fantastic for clearing sawdust and preventing heat buildup, the upward pulling force acts like a razor-sharp lawnmower blade against the top surface of your material. If your material isn't held down perfectly or your top laminate is brittle, it will splinter and fray the top fibers.
The Solution:
Switch to a down-cut bit for your final finishing passes, or use a compression bit. Compression bits feature a clever design with up-cut flutes at the very bottom (to keep the bottom clean) and down-cut flutes at the top (to push down on the surface fibers), giving you a pristine, splinter-free edge on both sides of the board.
Tool Wear and Dull Edges
Even the highest-grade solid carbide end mills have a finite lifespan. When a bit is brand new, its microscopic cutting edge shears cleanly through material fibers. As it gets older, that edge rounds over and dulls.
The Problem:
Instead of slicing cleanly, a dull bit begins to pound and tear its way through the stock. This friction generates massive amounts of heat, causing wood to char, plastics to melt and weld back together, and fibers to fray.
The Solution:
Inspect your bits regularly under a magnifying glass or check for white, reflective wear marks on the cutting tips. If your cuts require more force than usual or you notice a burning smell even at correct speeds, it is time to swap out that tired end mill for a fresh one.
Machine Chatter and Rigidity Issues
If your entire CNC gantry, spindle mount, or workpiece is vibrating like a guitar string during a cut, your cutting tool is bouncing microscopically against the material surface.
The Problem:
This rapid vibration leaves behind distinct, rippled wave patterns known as chatter marks. It ruins surface finishes and rapidly chips the delicate cutting edges of your carbide bits.
The Solution:
Check your mechanical rigidity. Are your stepper motor couplings tight? Is your spindle securely mounted in its collar? Is your material flexing under the cutting pressure? Slowing your feed rate down slightly, increasing your spindle RPM, or taking shallower depth-of-cut passes can often dampen out unwanted chatter and restore a smooth finish.
Incorrect Feeds, Speeds, and Chip Load
As we covered in previous guides, the delicate dance between how fast your spindle spins and how fast your machine moves across the table dictates the health of your cut.
The Problem:
If your feed rate is too slow relative to your spindle speed, your bit sits in one place too long, rubbing against the material instead of taking a healthy bite. This friction causes localized melting, burning, and micro-tearing of the material structure.
The Solution:
Recalculate your chip load. Make sure you are taking thick enough bites so that the tool cleanly shears the material away rather than scorching it with friction.
The Hidden Culprit: Runout and Spindle Play
Even if your bits are brand new and your feeds and speeds are dialed in to perfection, a mechanical defect known as spindle runout can secretly sabotage your edge finish.
The Problem:
Runout occurs when your collet, nut, or internal spindle bearings are worn, dirty, or misaligned, causing the cutting bit to spin slightly off-axis (wobbling like a bent bicycle tire). When runout is present, only one flute of a multi-flute end mill does the heavy lifting, taking an oversized bite while the other flutes merely rub. This uneven stress creates severe vibration, accelerated tool wear, and a noticeably chewed-up, jagged edge on one side of your cut.
The Solution:
Clean your collets and tool holders religiously with a wire brush and solvent—even a microscopic speck of sawdust trapped inside the taper can throw your bit out of alignment. If the problem persists, use a dial indicator to measure your spindle's actual runout and replace worn collets or bearings immediately.
Getting rid of rough edges on your CNC router isn't about luck—it's about diagnostics. By evaluating your bit geometry, checking for tool wear, eliminating machine chatter, and dialing in your feeds and speeds, you can banish fuzzy fibers and melted edges from your workshop forever.
