Decoding the Anatomy of Workshop Cutting Tools

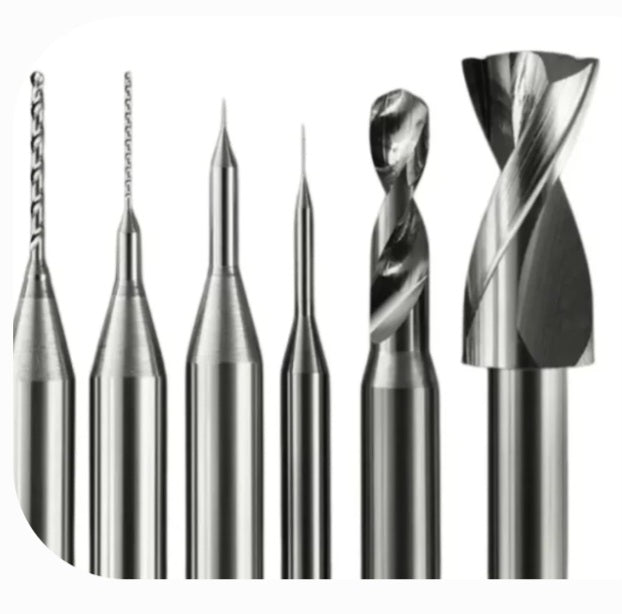

When you first dive into CNC routing and milling, looking at a catalog of cutting tools can feel like learning a completely foreign language. You will see terms like square end, ball nose, down-cut, single-flute, stub-length, and carbide grades, and wonder how on earth you are supposed to know which one to put in your spindle.
If you have ever snapped a bit halfway through a project or ended up with a fuzzy, ruined edge on your woodwork, you already know why understanding cutting tools matters. In the world of subtractive manufacturing, the end mill is the actual hand of your machine. It does the heavy lifting, carving your digital designs out of solid blocks of material.
In this beginner-friendly guide, we will break down what an end mill is, how it differs from a standard drill bit, and the key types you need to know to get professional results in your workshop.
End Mill vs. Drill Bit: Understandin the Difference
A common beginner mistake is using a standard drill bit in a CNC machine. While both tools spin and remove material, they are engineered for entirely different mechanical jobs:
Drill Bits:
Designed strictly for vertical movement (plunging straight down into a material like a hole). Their cutting edges are concentrated at the tip, and their sides are not built to handle lateral side-cutting forces. If you try to push a drill bit sideways across a piece of wood in a CNC router, it will bend, chatter, or snap.
End Mills:
Designed for both vertical plunging and horizontal lateral cutting. The bottom face of an end mill has cutting edges, but more importantly, the sides (flutes) are razor-sharp. This allows the machine to carve pockets, profile outlines, slot materials, and sweep horizontally across a workpiece with precision.
Anatomy of an End Mill: Key Terms to Know
To talk about end mills with confidence, you need to know their basic structural anatomy:
Shank:
The smooth, cylindrical upper portion of the tool that gets clamped securely into your CNC router’s collet.
Cutting Diameter:
The outer width of the cut the tool creates. A 1/4-inch end mill will leave a 1/4-inch wide path.
Flutes:
The helical grooves wrapped around the body of the tool. They act like conveyor belts to scoop up and evacuate chips out of your cut path. End mills typically come with 1, 2, 3, or more flutes.
Overall Length and Cutting Length:
The total length of the tool versus the actual length of the fluted cutting section. Choosing a shorter cutting length (stub length) is always better when possible because it reduces tool deflection and vibration.
The Most Common End Mill Profiles for Beginners
Different projects require different tip geometries. Here are the three most essential profiles every beginner should keep in their toolkit:
Square End Mills (Flat Bottom):
The workhorse of the CNC world. They have a flat, square bottom edge and sharp 90-degree corners. They are ideal for pocketing, facing, slotting, and cutting sharp internal corners and flat-bottomed dados.
Ball Nose End Mills (Rounded Tip):
Instead of a flat bottom, these bits feature a smooth, hemispherical rounded tip. They do not cut flat surfaces efficiently, but they are the undisputed champions of 3D contouring, carving topographical maps, organic shapes, sculptures, and smooth curved profiles.
V-Bits (Angled Cutters):
Cone-shaped bits with angles ranging from 30 to 90 degrees. They are primarily used for V-carving text, sharp sign-making, chamfering edges, and intricate line engraving.
Choosing Flute Counts: Why It Matters
The number of flutes on an end mill dictates how fast chips are cleared and how smooth the finish will be:
Single-Flute Bits: Feature only one cutting edge. They create massive chip clearance space, making them the absolute best choice for cutting gummy plastics and acrylics without melting them.
Two-Flute Bits:
The most versatile choice for woodworkers and general hobbyists. They balance chip clearance and surface finish nicely, making them great for softwoods, hardwoods, and plywood.
Multi-Flute (3+ Flutes):
Designed for harder materials like metals or dense composites. They leave a very smooth finish because more teeth are engaging the material per rotation, but they require faster feed rates to prevent burning.
Mastering end mills is a foundational step in your digital fabrication journey. By understanding the mechanical differences between drilling and milling, recognizing the purpose of square and ball-nose profiles, and matching your flute counts to your materials, you will eliminate broken bits, protect your machine, and take your workshop projects to the next level.
