Mastering Illumination for Flawless Point Clouds
When most people think about optical 3D scanning, they obsess over sensor resolution, laser power, or software algorithms. However, seasoned metrology professionals know an immutable law of digital manufacturing: your scan is only as good as your lighting.

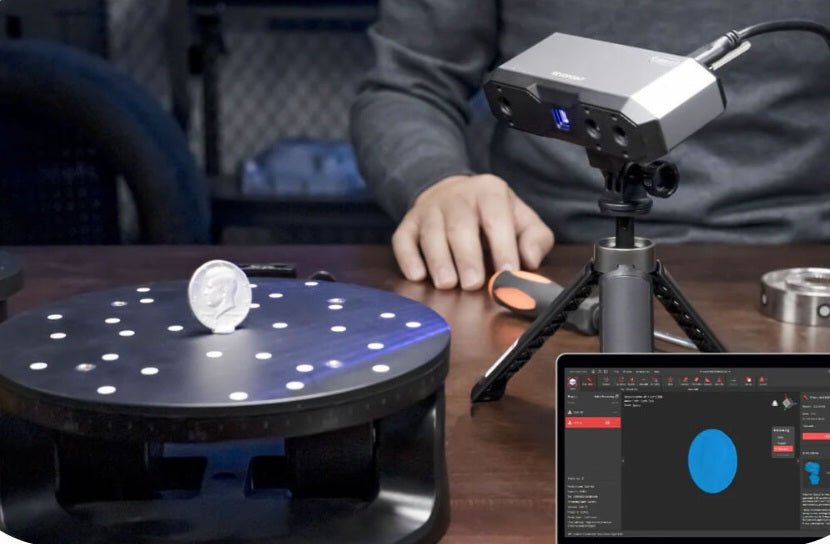

Optical 3D scanners—whether structured light systems, blue-laser handhelds, or photogrammetry rigs—are fundamentally cameras. They rely entirely on capturing photons bouncing off a physical surface and returning to an optical sensor. If ambient light interferes with that journey, or if local illumination washes out your sensor's exposure window, your carefully captured point cloud will degrade into noise, distortion, and incomplete geometry.
Understanding how lighting interacts with your scan environment is the hidden difference between an effortless data capture session and a corrupted mess of holes and artifacts. Let’s explore the primary ways lighting impacts your scan quality and how to control it.
Ambient Light Interference:
The Invisible Enemy
The most common environmental hazard in any workshop or laboratory is ambient light—overhead fluorescent tubes, sunlight streaming through windows, and harsh desk lamps.
What Happens:
Many structured-light scanners project their own specific patterns (such as alternating black-and-white fringe patterns or intense blue light grids) onto the object. If ambient light is too bright, it washes out the projected pattern.
The scanner's camera can no longer differentiate between the projector's light and the room's general illumination.
The Result:
You will notice severe data drop-out, heavy noise, and massive gaps in your mesh where the scanner simply cannot compute depth coordinates due to blown-out exposure values.
The Fix:
Always dim overhead lights, close window blinds, and operate your scanner in controlled, subdued ambient lighting whenever possible.
Dynamic Range and Surface Exposure Overload
Every optical sensor has a fixed dynamic range—its ability to capture both the darkest shadows and the brightest highlights simultaneously.
What Happens:
If your lighting is too direct or uneven, certain facets of your object will reflect a blinding amount of light straight back into the lens (overexposure), while recessed pockets and deep undercuts fall into pitch blackness (underexposure).
The Result:
Blown-out highlights register as flat, featureless zones or data spikes, while shadowed areas return zero points.
The Fix:
Use diffused, multi-angle lighting rather than a single harsh spotlight. Diffusers spread photons evenly across the part, smoothing out high-contrast transitions and allowing the sensor's exposure settings to capture both highlights and shadows accurately.
Shadows and Occlusion:
The Line-of-Sight Trap
Lighting and geometry are deeply intertwined when it comes to casting shadows across complex parts.
What Happens:
If your primary light source is positioned at a sharp angle relative to the scanner's sensor, deep ribs, narrow channels, and internal corners will fall into shadow.
The Result:
The scanner's camera is effectively blinded in those recessed zones, leading to incomplete surfaces that require manual patching in your CAD software later.
The Fix:
Position your light sources close to the optical axis of the scanner itself, or utilize secondary fill lights to illuminate deep cavities without introducing conflicting glare or thermal interference.
Color Temperature and Spectrum Dynamics
Not all light is created equal, and the color temperature (measured in Kelvin) of your workshop lighting plays a subtle role in optical data capture.
What Happens:
Standard incandescent bulbs emit a warm, yellow-heavy spectrum, while fluorescent and LED lights lean cool or blue. If your scanner is factory-calibrated for a specific narrow band wavelength (such as a strict 450nm blue laser), ambient light sources casting a broad, conflicting spectrum can introduce optical noise.
The Result:
Subtle surface color variations get misinterpreted as physical depth changes, creating microscopic ripples across an otherwise flat plane.
The Fix:
Match your workspace lighting to your equipment specifications, opting for neutral daylight-balanced LED lighting (around 5000K to 5600K) if your workflow involves color-texture mapping alongside geometric data capture.
The Bottom Line:
Taking Control of Your Environment
Controlling your lighting is not an optional luxury; it is a fundamental requirement for metrology-grade accuracy. By eliminating stray ambient light, diffusing harsh highlights, and preventing deep shadow occlusion, you ensure that your scanner's sensors receive clean, uncorrupted data on every single pass.
Beyond physical illumination and environmental glare, professionals are increasingly looking at how automated software algorithms dynamically adjust shutter speeds and laser power in real time to counteract fluctuating workshop light. Mastering these adaptive exposure settings alongside your physical workspace environment ensures your digital manufacturing pipeline remains resilient, repeatable, and completely free of optical distortion no matter the time of day.
