Ensuring Accuracy Before Production
You have captured your physical part with a high-end 3D scanner, imported the point cloud, and successfully generated a brand-new CAD model. The digital file looks sleek, smooth, and ready to go. But before you send that .STEP file off to a CNC machine, a 3D printer, or a manufacturing partner, you need to answer one critical question: How do you actually know the CAD model is accurate?
In digital manufacturing, blindly trusting a reverse-engineered model is a massive gamble. A single surface distortion, misaligned feature, or missing symmetry plane can result in thousands of rands wasted on tooling errors, poorly fitting assemblies, and scrapped parts.
Validating a reverse-engineered CAD model requires a systematic workflow combining color-mapped inspection, cross-sectional analysis, and functional boundary checks. Let’s break down how to properly vet your model before it enters production.
Perform 3D Deviation Analysis (Color-Map Inspection)
The gold standard for validating a reverse-engineered CAD model is comparing it directly back to the original raw scan data (or nominal CAD file) using inspection software like Geomagic Control X or PolyWorks.
The Heat Map Process:
Overlay the newly created CAD model onto the original mesh capture. The software will generate a color-mapped deviation report (commonly called a heat map).
Interpreting the Colors:
Green typically indicates that the surface matches within acceptable tolerance limits. Warm colors (yellow to red) show areas where the CAD model is "growing" or protruding past the original part, while cool colors (light to dark blue) indicate material undercuts or depressions.
Setting Tolerance Thresholds:
Configure your inspection software to highlight any deviation exceeding your engineering threshold (e.g., \pm 0.1\text{ mm}). If critical functional zones show heavy red or blue shifting, you know exactly where surface modeling needs to be reworked.
Inspect 2D Cross-Sections and Slice Profiles

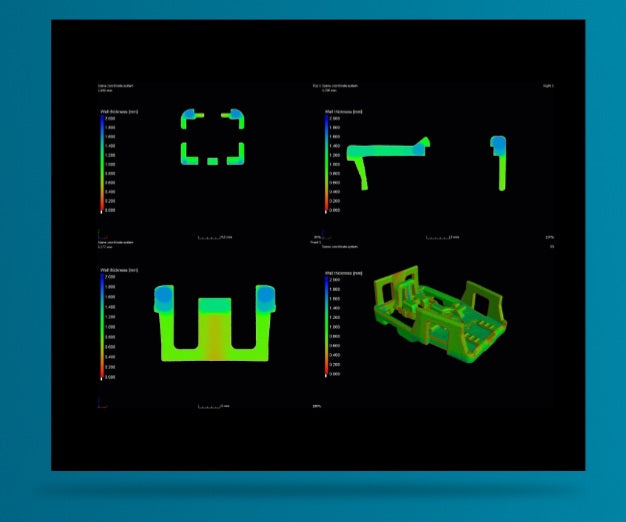

3D deviation maps are fantastic for overall surface health, but they can sometimes mask local geometric errors. To verify internal structures, wall thicknesses, and hidden features, you must use 2D slicing.
Cutting Planes:
Slice your CAD model and the original mesh along critical X, Y, and Z planes.
Comparing Profiles:
Overlay the 2D sketch lines of your solid model directly over the sliced point cloud outlines.
Spotting Hidden Errors:
This technique instantly exposes subtle drafting angle errors, asymmetric wall thickness variations, or warped internal radii that a 3D heat map might average out.
Verify Critical Interfaces and Mating Features
Not all surfaces on a mechanical part carry equal weight. A slight cosmetic contour error on an aesthetic housing shell might be completely harmless, but a 0.05mm deviation on a bearing journal or a bolt pattern will cause immediate mechanical failure.
Datum Verification:
Check your primary, secondary, and tertiary datums against the original design intent or mating hardware.
Hole and Slot Centerlines:
Verify that bolt circles, alignment pins, and fastener locations match precise coordinate values rather than just looking visually aligned.
Test-Fitting:
If possible, 3D print a rapid prototype of the mating interface or fixture the model in a digital assembly environment to ensure it interfaces seamlessly with adjacent components.
Check Parametric Cleanliness and Feature Tree Integrity
If your project brief specified a fully editable, parametric CAD model (such as a feature-based SolidWorks or Fusion 360 file), you must inspect the model’s internal architecture, not just its outer skin.
Avoid Dumb Solids:
Ensure that complex shapes aren't just messy, stitched surface patches with micro-gaps that will crash downstream CAM software.
Symmetry and Constraints:
Verify that symmetrical features are properly constrained and that fillets, chamfers, and holes are established as editable features rather than hard-coded surface glitches. A clean feature tree ensures that if you or your client need to modify the design later, the entire model won't break.
Validation Saves Production Budgets
Taking the time to rigorously validate a reverse-engineered CAD model closes the loop on your digital manufacturing workflow. By combining 3D heat map inspections, 2D cross-sectional slicing, and strict interface checks, you ensure absolute confidence before committing your data to physical production.
Environmental control and thermal stability data should also be referenced during final validation checks, confirming that temperature fluctuations during the initial scan did not induce micro-distortions that could misrepresent true part dimensions on high-precision assemblies.
Additionally, documenting baseline environmental parameters—such as ambient humidity and barometric pressure during the scanning sequence—can provide critical traceability for ultra-high-tolerance aerospace or medical components.
