When wrapping up a 3D scanning or reverse-engineering project, the final deliverable comes down to a choice of file formats. For anyone stepping into the digital manufacturing space, getting handed a folder full of foreign extensions like .STL, .STEP, or .IGES can feel like reading a foreign language.
Choosing the wrong file format can instantly derail your workflow. Requesting a raw polygon mesh when you actually need an editable solid CAD model will leave you unable to modify dimensions in your design software. Conversely, demanding a complex parametric file for a simple 3D printing or visual rendering job results in bloated file sizes and wasted engineering hours.
Let's break down the differences between Mesh, STEP, and IGES files, and explore exactly when you should request each one.
Mesh Files (.STL, .OBJ, .PLY):
The Visual and 3D Printing Standard
Mesh files are the direct output of a 3D scanner. Instead of smooth mathematical curves, a mesh represents an object's surface as a vast interconnected web of flat triangles (polygons).
What They Contain:
Millions of coordinate points linked together to form a hollow or solid skin, sometimes including color texture maps (in .OBJ or .PLY formats).
Best Use Cases:
3D printing physical prototypes (most slicers accept .STL files natively).
Digital archiving, virtual reality (VR), and e-commerce visual rendering.
Finite Element Analysis (FEA) or computational fluid dynamics, where high-density surface geometry is required.
The Catch:
Meshes are notoriously difficult to edit downstream. Changing the diameter of a hole or modifying an angle on an .STL file requires digital sculpting rather than standard engineering adjustments.

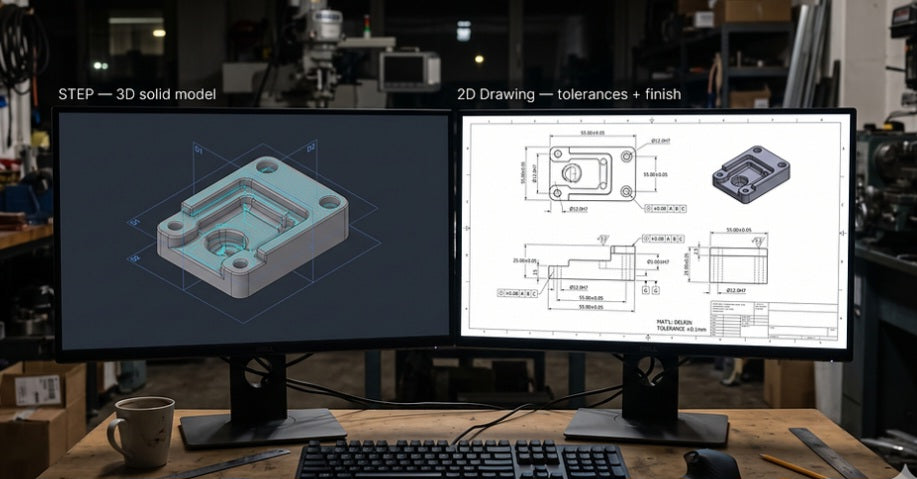

STEP Files (.STEP / .STP):
The Modern Solid Modeling Standard
STEP (Standard for the Exchange of Product Model Data) is a universal CAD file format that represents 3D objects using precise mathematical boundaries, NURBS surfaces, and solid geometry rather than triangles.
What They Contain:
Clean, solid, boundary-representation (B-rep) models. Curved edges remain mathematically smooth arcs and circles no matter how closely you zoom in.
Best Use Cases:
Full parametric reverse engineering where you need to import the model into software like SolidWorks, Fusion 360, or AutoCAD.
Downstream CNC machining, mold making, and manufacturing assembly design.
Situations where you need clean, editable geometry with accurate holes, fillets, and flat faces.
The Catch:
STEP files are only as good as the technician who modeled them. If the point cloud was poorly translated into surfaces, the resulting solid file may contain micro-gaps or stitching errors.
IGES Files (.IGES / .IGS):
The Legacy Surface Standard
IGES is an older, wireframe and surface-based file format established decades ago for transferring CAD data between different software suites.
What They Contain:
Collections of individual trimmed NURBS surfaces and wireframe curves stitched together to represent an object.
Best Use Cases:
Interfacing with older legacy CAD software packages that struggle with modern .STEP solid protocols.
Exchanging complex freeform surface shapes (like automotive body panels or organic consumer goods) between specialized surface-modeling programs.
The Catch:
IGES files are largely considered legacy technology. Because they transfer individual surfaces rather than a unified solid body, they are prone to missing face gaps, translation errors, and corrupt imports when opened in modern parametric design tools. Whenever possible, modern engineers prefer .STEP over .IGES.
Which One Should You Ask For?
Choose a Mesh (.STL / .OBJ) if you are 3D printing, rendering, or performing digital visual inspections.
Choose a STEP File (.STEP) if you are doing reverse engineering, CNC machining, or mechanical assembly work in modern CAD software.
Choose an IGES File (.IGES) only if a legacy system explicitly requires it for complex surface transfer.
Match the File to the Function
Clear communication regarding file deliverables prevents costly friction between workshops and clients. Always align your file request with your end goal—use meshes for printing and visualization, and modern solid formats for engineering and production.
Establishing strict naming conventions and version-control protocols for your exported digital assets ensures that workshop teams and clients never accidentally manufacture obsolete revisions.
