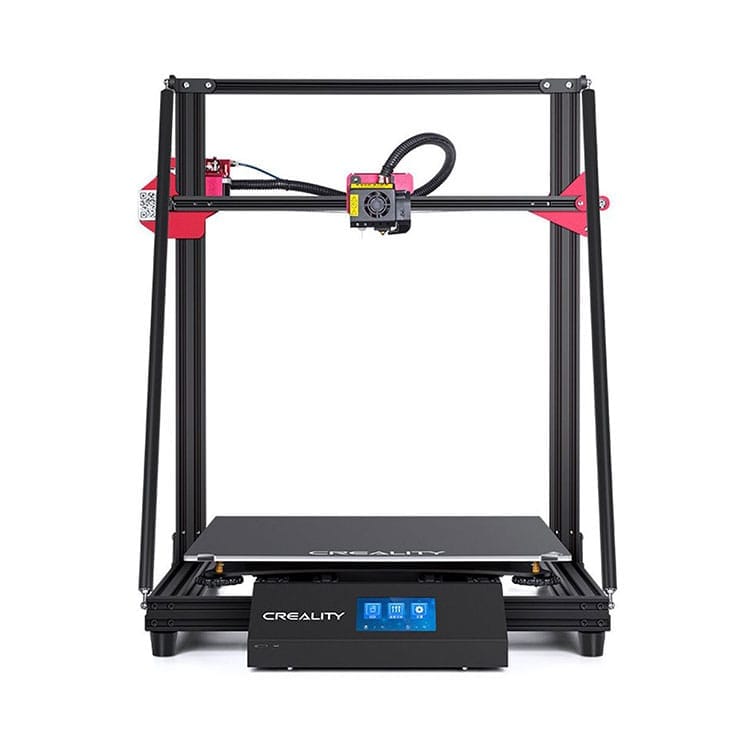

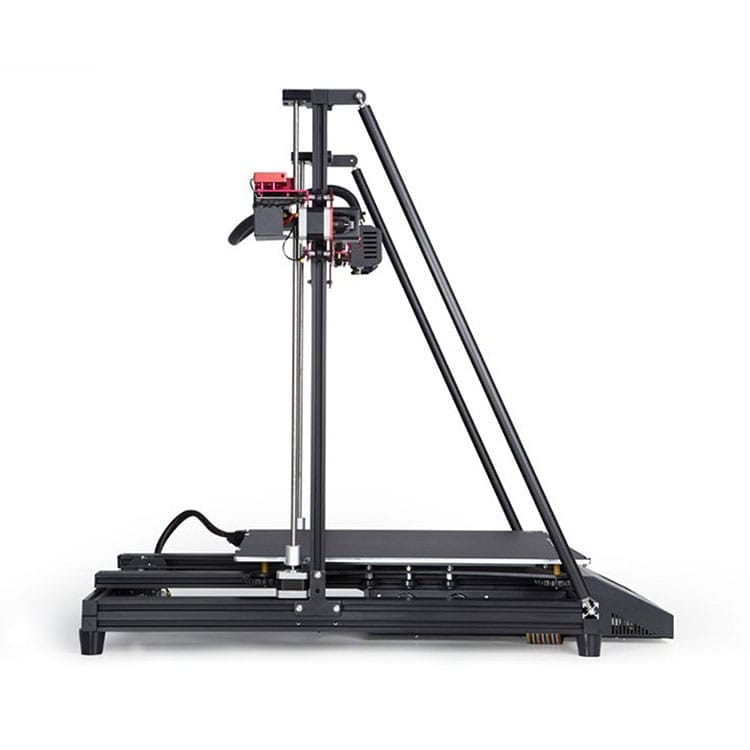

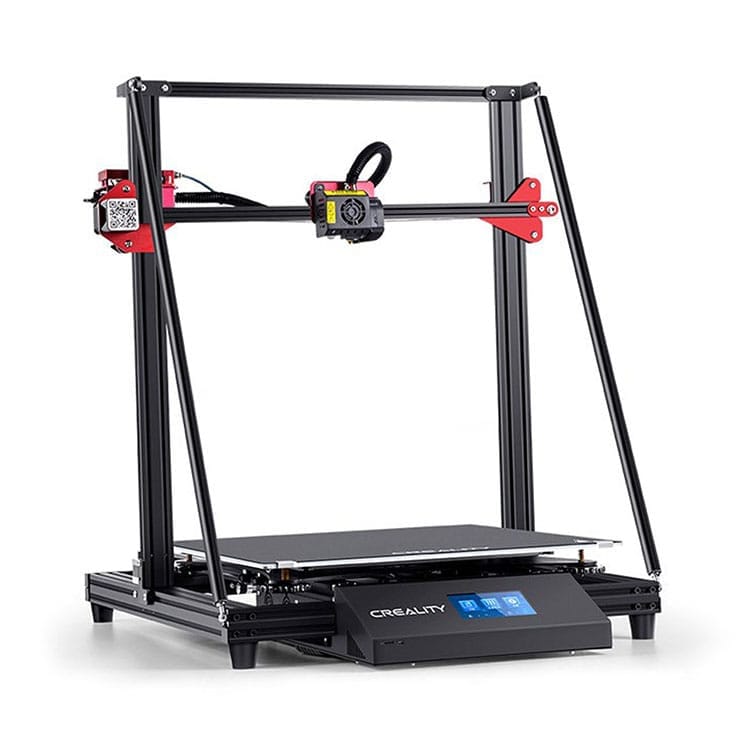

The Creality CR-10 Max 3D Printer is a popular, large-format FDM/FFF desktop printer ideal for professionals, hobbyists, and makers. It features automatic levelling, high extrusion with smooth feeding, two power supplies and material shortage detectionl.
Key Features
-
Super-Larger Size: 450*450*470mm super large molding size to meet diverse printing requirements with golden triangle to reduce Z-axis vibration for high large-size printing precision.
-
Smooth feeding: Bondtech gear extrusion structure, double drive gears for a strong thrust and high extrusion and feeding performance.
-
Automatic leveling: Imported BL touch 16 points fast leveling.
-
Two power supplies with wide voltage: Two power supplies for motherboard and hotbed by way of two-way output, synchronous power supply for the quick response and stable operation.
-
Filament detector: Automatic suspension when materials run out, break up or run into other abnormalities for energy conservation and consumption reduction.
-
Stable transmission: Y-axis double transmission belts and a double-axis motor with strong momentum for stable transmission and printing precision.
-
Imported Bowden feeding tube: Blue high-temperature resistant Capricorn Teflon tube without being easily blocked for smooth feeding and printing efficiency.
-
Resume printing function: Automatically save printing records, continue printing after power-on for a high model printing success rate.
Technical Specifications
Build volume: 450x450x470 mm
Accuracy: ±0.1mm
Layer height: 100 – 400 microns
Feeder system: Bowden
Extruder type: Single
Nozzle size: 0.4 mm, 0.8 mm
Nozzle temperature: ≤250°C
Hot bed temperature: ≤100°C
Printing method: TF card offline or online
Frame: Aluminum
Closed print chamber: No
Temperature controlled print chamber: No
Bed leveling: Automatic and manual
Display: 4.3-inch touchscreen
Connectivity: Micro SD card
Built-in camera: No
Machine power: 750W
Power supply: Motherboard 75W, 24V; input: 100-240V AC, output: 24V Hotbed 750W, 24V; input: 100-240V AC, output: 24V
Product Dimension
Frame dimensions: 735x735x305 mm
Weight: 22.7kg
