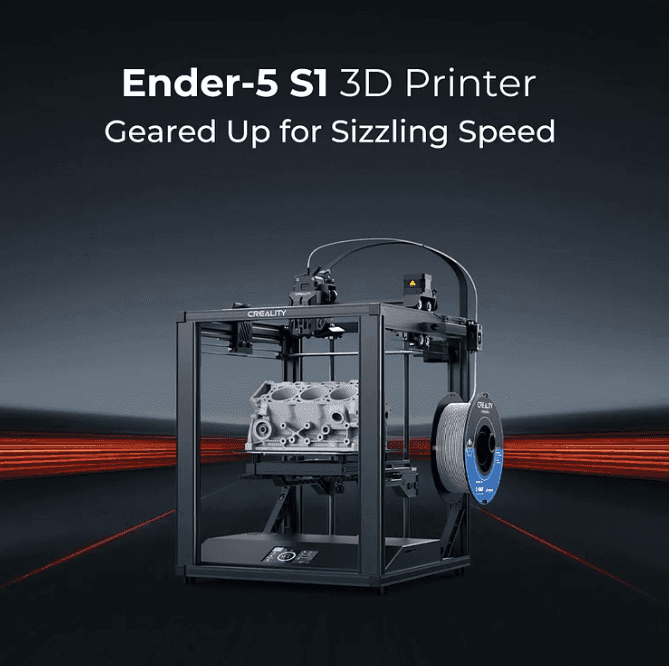

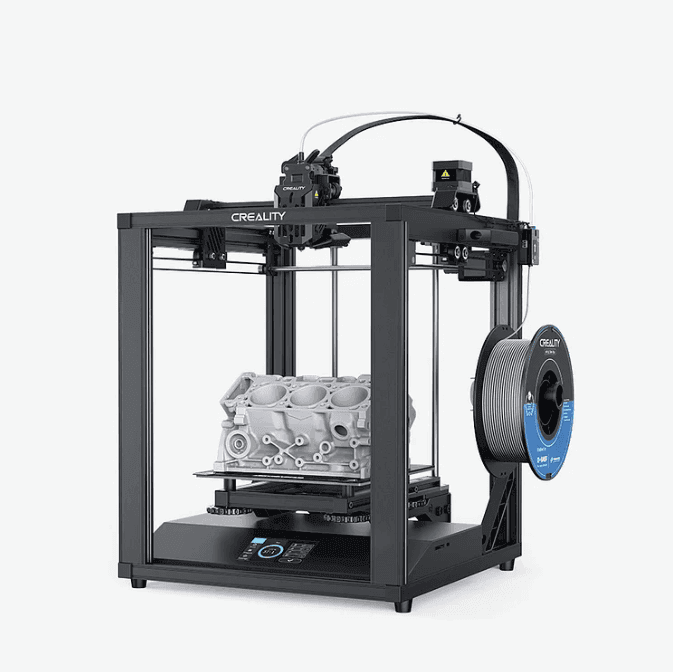

The Creality Ender-5 S1 3D Printer is an upgraded version of the popular Ender-5 model, offering enhanced features and improved performance.

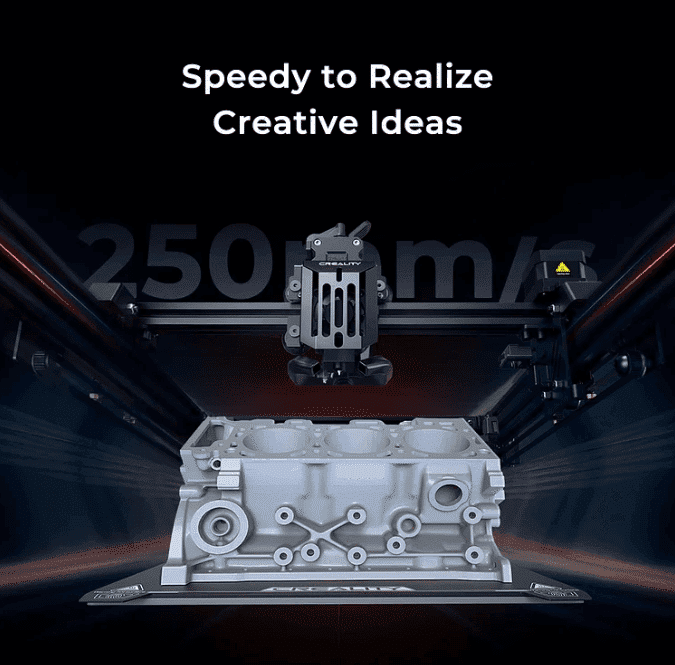

Upgraded motion system for 2000mm/s² acceleration and up to 250mm/s (5 times) printing speed*. Each X/Y/Z axis is driven by a high-precision stepper motor. A steel transmission shaft to connect and sync the two Y-axis belts. High-torque Y-axis 42-48 motor for responsive and precise motion.
It slashes printing time for all types of models. Higher efficiency and less power consumption.

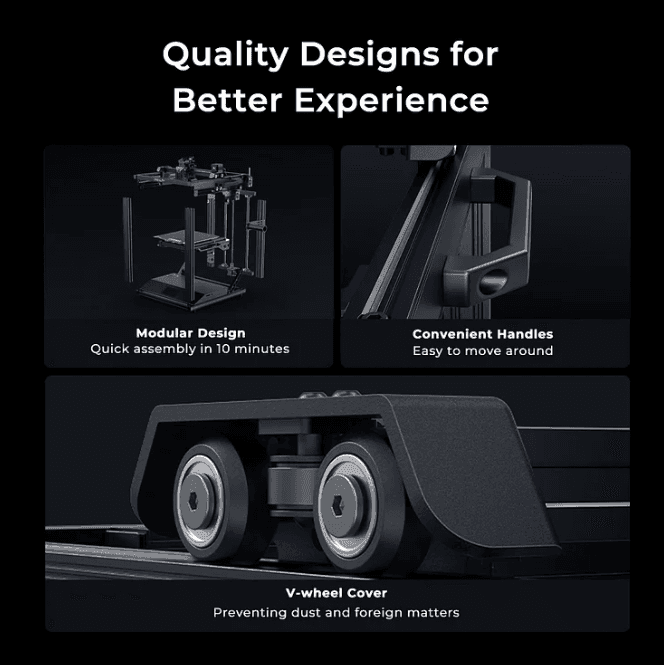

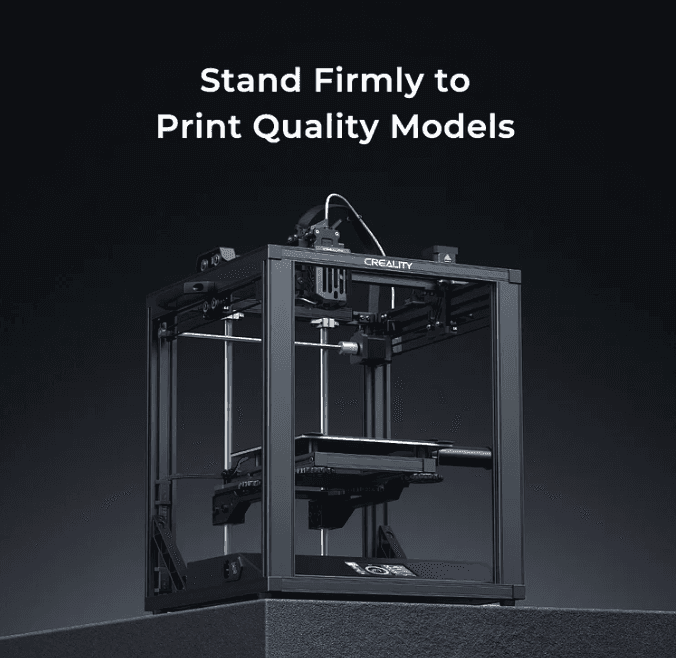

An all-metal cube frame goes with the classic Cartesian structure. The stability is enhanced by thick linear shafts, extra gussets, two cantilevers, and silicone bed mounts.
100% success rate for 1,000-hour printing at 250mm/s high speed and 0.2mm layer height.

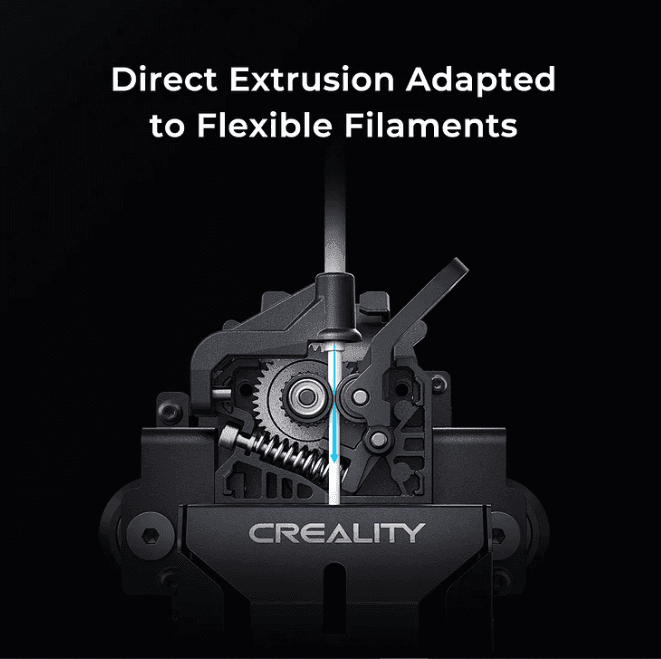

The all-metal "Sprite" direct extruder features dual gears of a 1:3.5 gear ratio. It delivers a powerful and uniform 80N extrusion force. Way better when printing with flexible filaments like TPU.

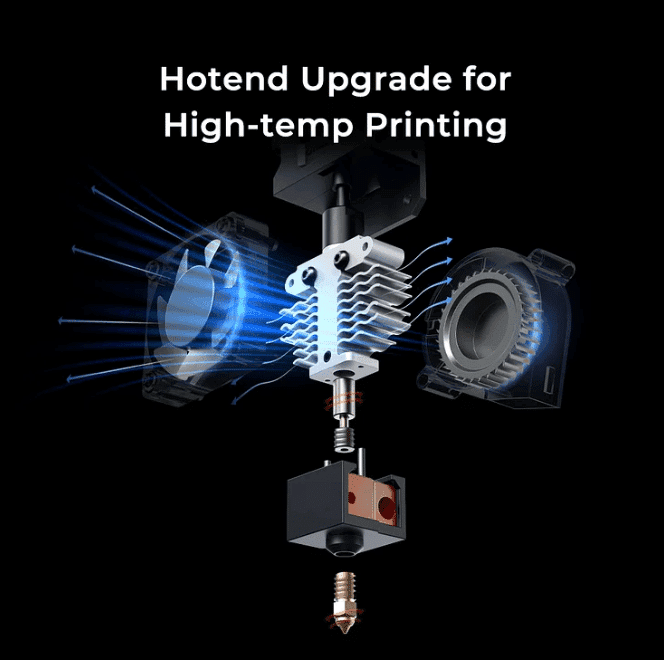

Titanium Alloy Heatbreak: Low thermal conductivity for blocking heat creep. Able to tame up to 300℃. Corrugated Heatsink: 2.5 times surface area that is rapidly air-cooled by a silent axial flow fan. Large Melting Chamber: 50mm³ melting chamber surrounded by a large 4000mm³ heater block.

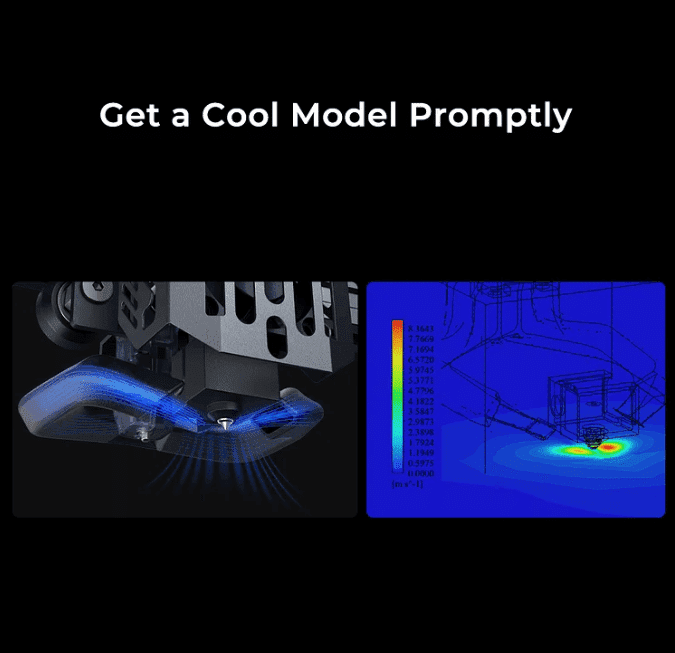

The special "Urus" air ducts channel the strong wind generated by a large 5015 fan to cool the freshly printed section directly. The deposited hot material will harden and bond up immediately, thus less drooping or warping caused by overheating. It gives better overhangs, bridges, and more details overall.
A whole new world opens, as a variety of heat-resistant engineering plastic filaments are brought into the game. Regular Filaments: PLA, PETG, TPU High-temp filaments*: ABS, PC, ASA, HIPS

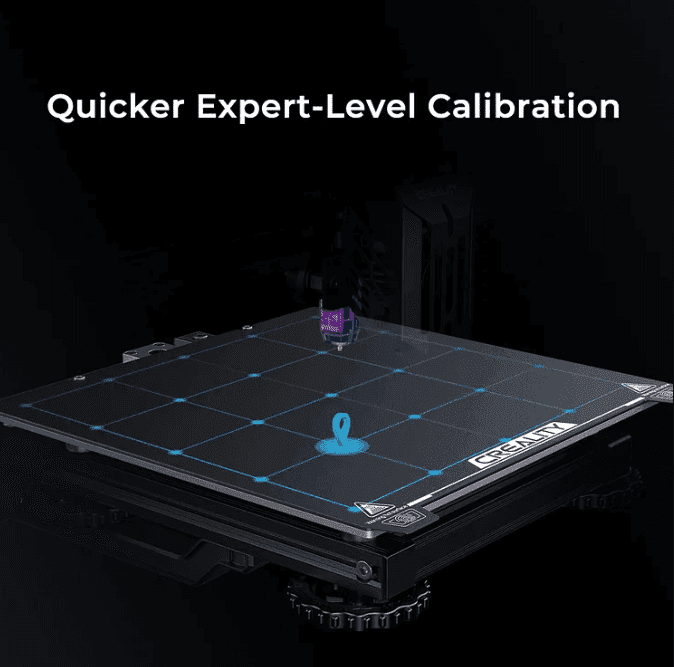

"Level the bed quickly by CR Touch auto-leveling and auxiliary leveling, or offset the Z-axis height at 0.01mm accuracy. Get the perfect first layer with less hassle.

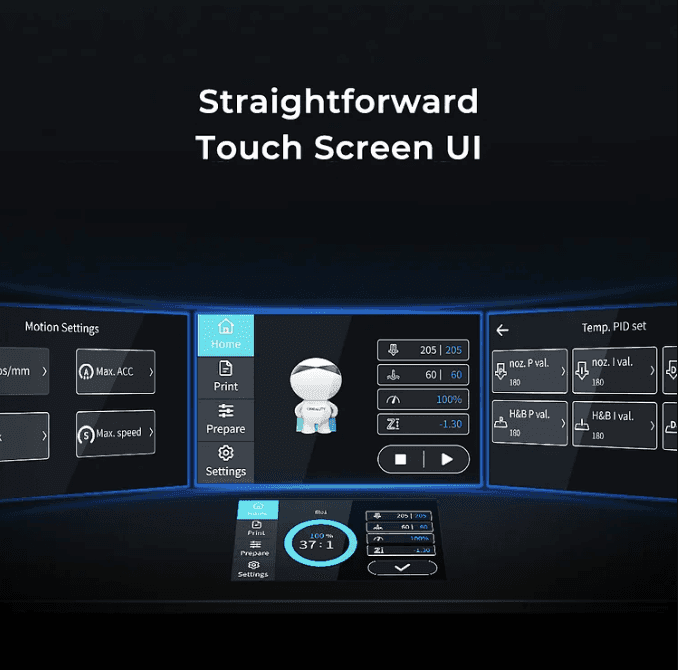

4.3-inch touch screen featuring a wide viewing angle, sensitive response, and a tabbed user interface. A temperature PID control page is also added for easy adjustment.

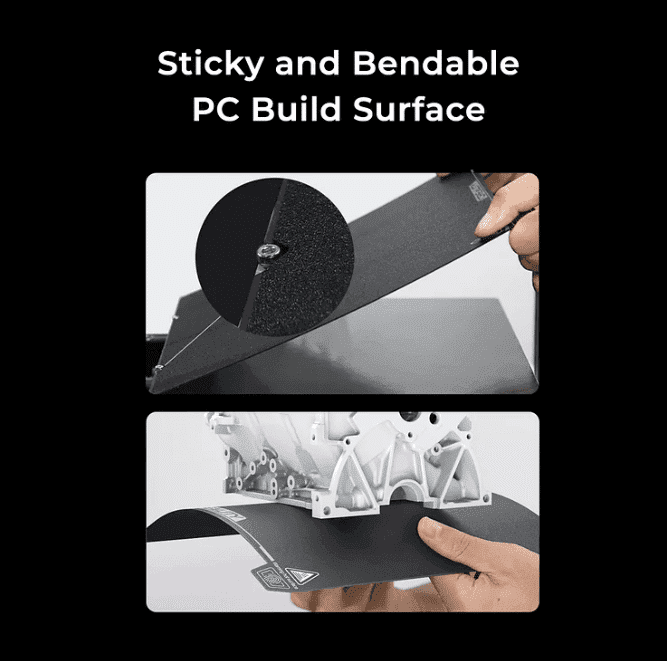

The PC spring steel sheet has two notches and a magnetic base for quick installation. The frosted PC surface is sticky to models. After printing, the model can be removed right away with a slight bend

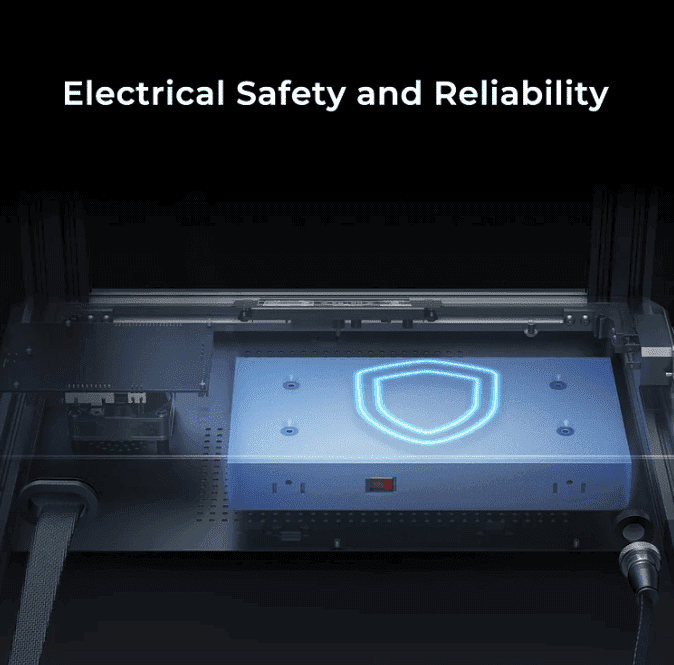

Secure aviation connector. Encased 350W power adapter. And, no more loose wires and cables with the nylon wire harness sleeve. All for safety and tidiness
Technical Specifications
Creality Ender 5 S1 3D Printer - Technical Specifications:
|
|
|
– FDM |
|
|
– 220x220x280mm
– Actual Bed Size = 235 x 235mm
|
- Chassis Size (Desk Space Required)
|
– 425x460x570mm |
- Filament Diameter Compatibility
|
– 1.75mm |
|
|
– Sprite Dual-Gear Direct Drive with |
|
|
– All-Metal |
|
|
– 0.4mm Brass Nozzle |
|
|
– Creality Ender 5 S1 Hotend Assembly |
- Maximum Hotend Temperature
|
– 300°C |
|
|
– PC spring steel sheet |
- Print Platform Max Temperature
|
– 110°C |
|
|
– 120mm/s |
|
|
– up to 250mm/s |
- Layer Height (Resolution)
|
– 100 to 400 microns |
- Motherboard / Primary Controller
|
– 32-bit Creality Silent Motherboard V1.3 |
|
|
– 4.3inch Colour Touch Screen LCD Display |
- Slicing Software Compatibility
|
– Creality Slicer | Creality Print | Cura | Repetier-Host | Simplify3D |
|
|
– Memory SD Card | USB Type-C Cable |
|
|
– Automatic: CR Touch Auto-Levelling Sensor |
- Print Resume Functionality
|
– Included |
|
|
– Included |
|
|
– Black Anodised Aluminium / Steel Plating |
- Included Slicing Software
|
– Cura Slicer (Download Latest Version Here) |
- Included 3D Printing Filament
|
– 200g PLA Filament |
|
|
– Up to 250mm/s High-Speed Printing
– Stable Cube Frame
– Sprite Direct Drive Extruder
– CR Touch Auto-Levelling |
|
|
– 12.1kg |
|
|
– 14.7kg |
|
|
– 24V DC |
|
|
– 100V to 240V AC |
|
|
– 350W |
Parts Included with the Creality Ender 5 S1 3D Printer:
|
- Ender 3 S1 3D Printer Assembly Components
|
- 1x Blue Wire Clip & Bending Harness
|
|
|
- 5x Flexible Flat Cable Clips
|
|
|
|
- 1x Spare Brass 0.4mm Nozzle
|
|
|
|
|
|
|
|
|
|
|
