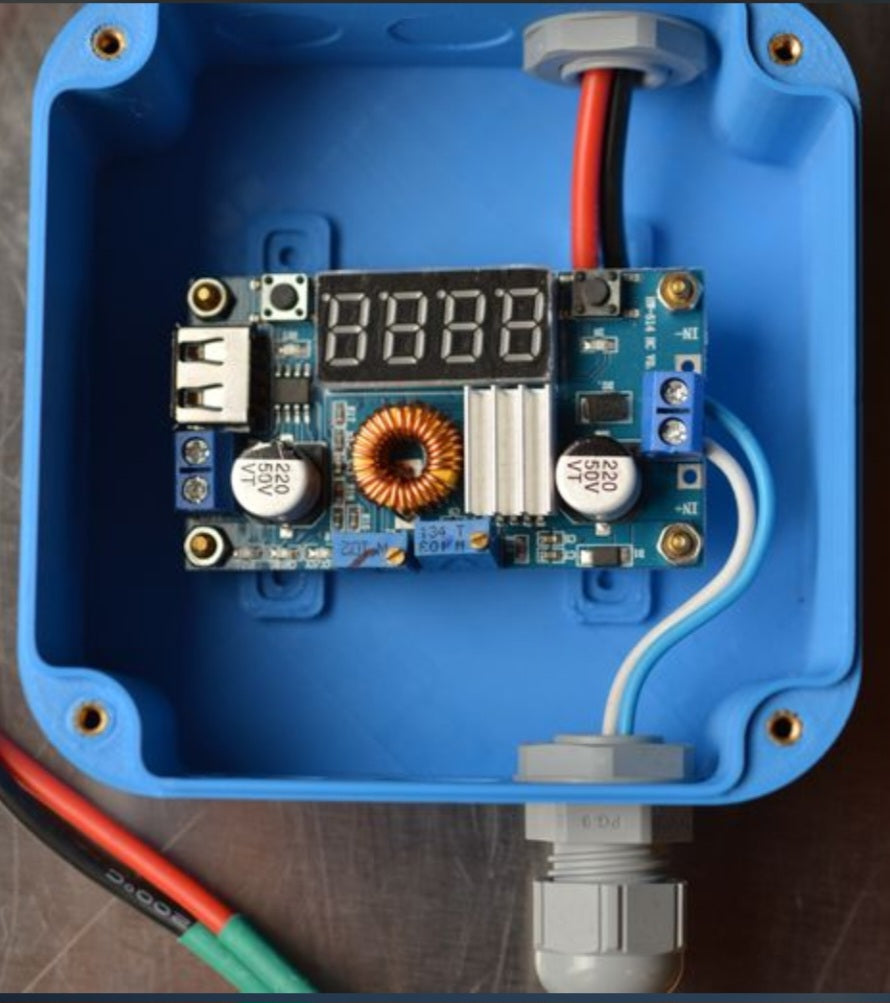

Engineering Heavy-Duty 3D Printed Control Boxes and Electrical Enclosures: Optimizing Dielectric Isolation, Structural Load Paths, and Modular Panel Integration
Designing reliable industrial control boxes and heavy-duty electrical enclosures requires navigating rigorous constraints concerning electrical safety, structural rigidity, and long-term environmental exposure. Traditional sheet metal fabrication or heavy injection-molded housings often involve restrictive minimum order quantities and prohibitive tooling overhead, creating friction during iterative design phases. By leveraging advanced industrial additive manufacturing, workshop engineers can rapidly fabricate bespoke electrical enclosures and modular control panels on demand, allowing for precise functional testing of DIN rail clearances, terminal block layouts, and heavy cable entry points before committing to final scale deployment.
Dielectric Isolation and Material Performance
High-Voltage Dielectric Integrity:
Selecting engineering-grade polymers such as flame-retardant ABS, polycarbonate, or specialized ASA filaments that offer high dielectric breakdown strengths to prevent electrical arcing and ensure complete internal circuit isolation.
Flame Retardancy and Thermal Ratings:
Incorporating self-extinguishing materials certified to standard safety ratings (such as UL 94 V-0) to mitigate combustion risks in high-draw industrial power distribution environments.
Structural Load Paths and Modular DIN Rail Integration
Integrated Mounting Bosses and Ribs:
Designing internal structural ribbing and reinforced mounting planes directly into the CAD architecture to securely support heavy transformers, PLCs, and heavy-duty circuit breakers without wall flexing.
Snap-In and Fastened DIN Rail Channels:
Engineering precise slot tolerances and slide-in guide rails for standardized DIN rails, allowing technicians to snap industrial control components into place with exact mechanical repeatability.
Environmental Sealing, Cable Management, and Ingress Protection
Gasket Channels and IP Rating Optimization:
Milling or printing dedicated compression channels along the mating perimeter of the lid and base to house continuous elastomer O-rings, achieving robust Ingress Protection (IP65 or IP67) against dust and moisture jets.
Strain Relief and Gland Port Integration:
Pre-designing reinforced knockouts, threaded cable gland ports, and internal zip-tie anchor points to absorb external cable pulling forces and protect delicate internal wiring terminals from mechanical fatigue.
Surface Finishing, UV Stability, and Field Deployment
Chemical Vapor Smoothing and Sealing:
Applying industrial vapor smoothing treatments to seal microscopic layer lines and porosity in the polymer matrix, substantially improving moisture resistance and preventing chemical absorption in dirty workshop environments.
Ultraviolet (UV) Stabilization and Weathering Resistance:
Selecting weather-resistant polymer formulations and protective exterior topcoats to prevent structural embrittlement, fading, and micro-cracking when electrical control boxes are installed outdoors or in sunlit industrial yards.
Design-for-Manufacture (DfM) Validation and Thermal Stress Testing
Enclosure Internal Heat Dissipation Analysis:
Bench-testing closed-loop thermal accumulation under maximum electrical loads, validating whether active cooling fans or passive heat-sink extrusions must be integrated into the housing walls.
Vibration and Impact Resilience Audits:
Subjecting fully populated control boxes to rigorous shock and vibration profiles to verify that internal circuit boards, heavy contactors, and wire harnesses remain securely fastened under heavy factory machinery operations.
Integrating these robust pre-production validation practices into your manufacturing workflow ensures that every custom electrical enclosure meets the exacting standards of heavy industrial environments. By rigorously testing dielectric properties, thermal dissipation, and sealing tolerances early, workshops can deliver durable, production-grade control housings with absolute structural confidence.
