When you push a desktop CNC router to handle high-detail woodworking, few tasks are as demanding or unforgiving as carving crisp, legible small text into plywood. Unlike uniform solid hardwoods like maple or walnut, plywood is an engineered composite built from alternating veneer grain directions, bonded with industrial adhesives, and highly susceptible to splintering along its outer plies.
When your design requires fine typography, serif fonts, or micro-engravings under 10mm in height, standard flat-end mill bits will inevitably tear out wood fibers and ruin your lettering. To achieve professional, sharp-edged text, your tool selection usually comes down to two specialized engraving options: the V-bit (conical engraving bit) and the Spiral O-flute bit. Let's break down how each tool performs on multi-ply panels, analyze their cutting mechanics, and review the optimal settings for clean results.
The V-Bit Advantage:
V-bits (commonly set at 60 or 90 degrees) utilize a conical geometry that varies line width dynamically by altering cutting depth, making them exceptionally rigid and resistant to snapping compared to thin flat bits.
The Spiral Bit Precision:
Straight or spiral up-cut and down-cut bits maintain a uniform trench width, which is ideal for pocketing letter interiors, but their microscopic diameters make them vulnerable to lateral stress.
The Plywood Challenge:
Alternating grain layers in plywood react differently to cutting pressure; soft inner core plies cut differently than hard exterior face veneers, often causing fuzzy or frayed edges.
Feed Rate and RPM Balance:
High spindle speeds paired with slow feed rates will friction-burn the wood layers and dull your carbide cutting edges within minutes.
Step-by-Step Carving Protocol

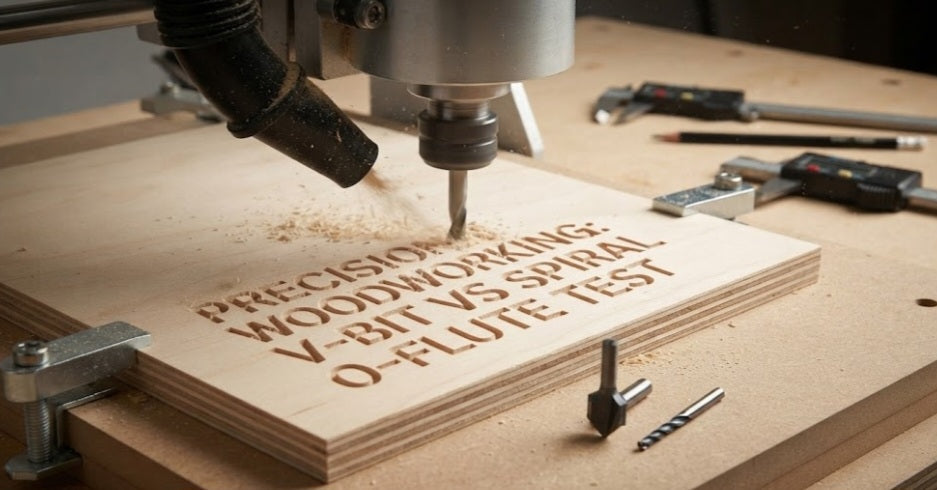

To determine which bit produces superior results on standard 12mm birch plywood, we conducted a side-by-side test carving a 15mm tall text string using identical G-code parameters.
Preparing the Surface:
Secure your plywood tightly to the spoil board. Sand the top face veneer lightly with 220-grit sandpaper and seal it with a coat of shellac or sanding sealer to lock down loose wood fibers before machining.
The V-Bit Test (90-Degree V-Carve):
Program your CAM software for a V-carve toolpath. As the conical bit plunges and retracts, it adjusts the line width automatically. The 90-degree V-bit slices through the top face veneer cleanly, leaving sharp angular corners that catch the light without any veneer tear-out.
The Spiral Bit Test (1.0mm Down-Cut):
Program a pocketing toolpath using a 1.0mm single-flute down-cut spiral bit to clear out the letter channels. While the vertical walls remain smooth, the tiny bit struggles slightly when crossing the grain boundaries of the inner plywood core, requiring a quick pass with a nylon bristle brush to clear stray fibers.
Post-Processing and Cleanup:
Blow away remaining debris with compressed air. For V-carved text, apply a dark acrylic paint or stain into the grooves, then sand away any surface overflow to make the lettering pop with high contrast.
Choosing Angles:
Use a 60-degree V-bit for tighter, denser text strings, and a 90-degree V-bit for bolder, shallower lettering that requires greater structural tool strength.
Preventing Tear-Out:
Always prioritize down-cut spiral or conical V-profile geometry over standard straight bits when working with multi-ply sheet goods to protect the fragile top veneer.
Mastering micro-text carving on plywood bridges the gap between rough carpentry and fine digital craftsmanship. By pairing the right conical V-bit geometry with proper surface preparation, you eliminate grain tear-out and achieve consistently crisp, professional lettering on every project.
Beyond choosing the right bit geometry, achieving flawless micro-typography on multi-ply panels relies heavily on humidity control and wood conditioning. Because engineered plywood absorbs ambient moisture unevenly across its varying veneer layers, unsealed panels can warp microscopically on the spoil board during extended engraving passes. Storing your sheet goods in a climate-controlled environment and applying a penetrating sanding sealer prior to milling prevents localized fiber swelling, ensuring your tiny text characters maintain uniform depth and razor-sharp clarity across the entire board.
