When you ship fragile, high-precision creations—such as delicate multi-ply wooden maps, custom acrylic display stands, or precision electronics—transit protection and unboxing presentation are critical. Standard bubble wrap or loose packing paper may prevent breakage, but custom-milled closed-cell foam inserts provide a snug, professional cradle that elevates your packaging to a luxury standard.

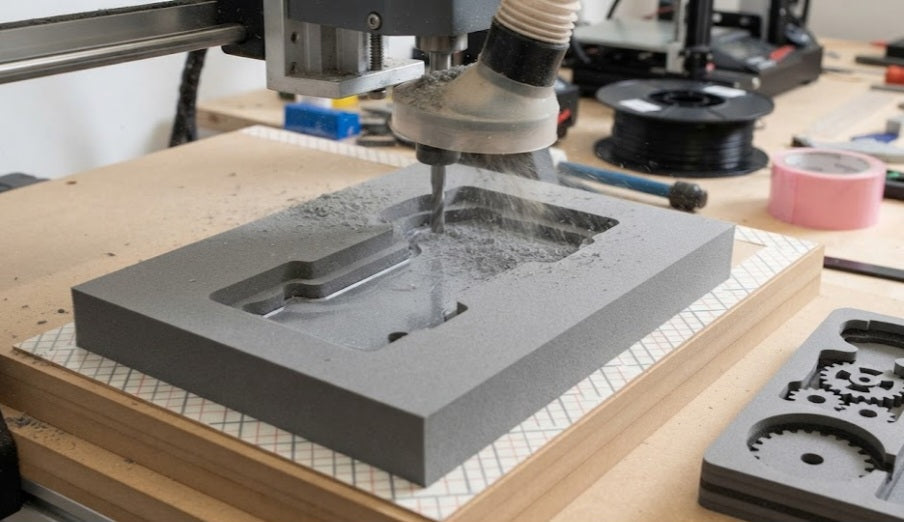

While laser cutters struggle with thick foam by melting edges unevenly and releasing toxic fumes, a desktop CNC router equipped with the right tooling can slice through dense packaging blocks cleanly and accurately. Let's explore how to set up your machine, select optimal bits, and master foam routing for secure shipping.
The Laser Problem:
High-intensity heat from lasers melts polyethylene (PE) and EVA foams, leaving scorched, gummy edges and releasing hazardous smoke.
The CNC Advantage:
Physical shearing via a rotating cutter allows you to mill precise, pocketed recesses that match the exact profile of your products.
Material Selection:
High-density EVA foam and cross-linked polyethylene (XLPE) offer rigid, tear-resistant support that absorbs heavy impact during transit.
Workholding Mechanics:
Because foam blocks are extremely lightweight and flexible, securing them without crushing the material requires dedicated workholding strategies.
Step-by-Step Foam Milling Protocol
Machining foam requires a completely different approach to feeds and speeds compared to wood or acrylic. Because foam offers virtually no cutting resistance, incorrect parameters will cause the bit to tear the material rather than slice it.
Choosing the Right Bit:
Avoid standard multi-flute end mills, which tend to grab and pull soft material. Instead, use a single-flute O-flute bit or a down-cut spiral bit designed for plastics and soft composites to achieve clean, sheared sidewalls.
Workholding Without Crushing:
Avoid heavy mechanical clamps that warp or dent the foam block. Apply double-sided carpet tape to the underside of the foam sheet and press it evenly onto your MDF spoil board, or use a vacuum clamping table if available.
Optimizing Speeds and Feeds:
Increase your router's feed rate significantly while keeping a moderate spindle speed. Moving too slowly causes friction heat that melts the cell walls of the foam, while a fast feed rate cleanly slices through the material.
Pocketing and Depth Control:
Program your CAM software to clear out cavities using shallow, multi-pass depth increments. For deep packaging blocks, stepped passes prevent the bit from wandering or binding inside the foam.
Managing Static and Debris:
Foam routing generates highly static-charged crumbs and dust particles. Adjust your dust collection boot close to the material surface or keep a shop vacuum on hand for immediate cleanup.
Layered Lamination:
For thick packaging boxes, cut multiple thin foam layers (such as three 10mm sheets) and laminate them together using spray adhesive, placing the product cutout only in the top layers.
Expanding your workshop workflows into custom foam packaging bridges the gap between functional fabrication and professional transit protection. By dialing in high-speed, low-heat routing techniques, you ensure that every delicate piece leaving your studio arrives safely in pristine condition.
