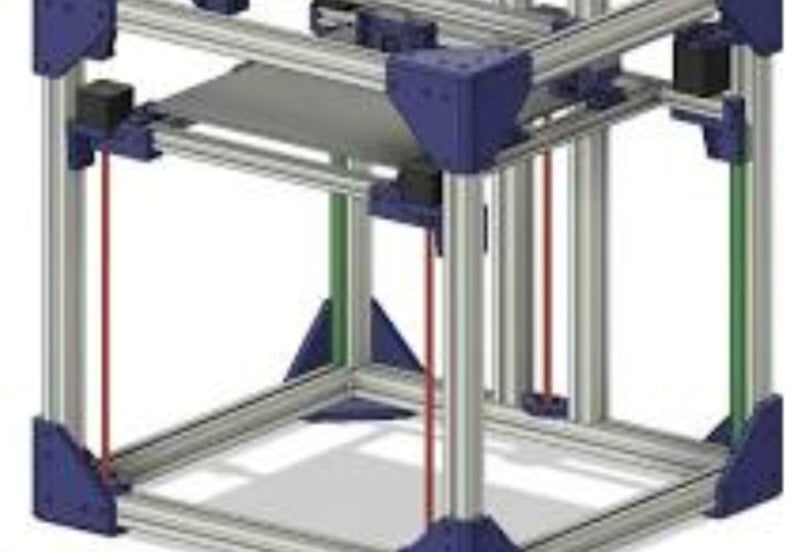

Engineering Tolerance Clearances for Functional 3D Printed Assemblies: Eliminating Friction, Binding, and Slop
Moving from digital CAD models to functional physical assemblies requires more than just exporting an STL file; it demands a deep understanding of how molten polymer expansion, perimeter squish, and thermal contraction alter actual manufactured dimensions. Unlike CNC-milled metals or injection-molded plastics where tight zero-tolerance fits are standard practice, fused deposition modeling requires deliberate, calculated clearance gaps between mating parts. Without accounting for these physical variables, mechanical pins will bind up in holes, sliding mechanisms will lock solid, and articulated hinges will fuse into single solid blocks. For workshop professionals and industrial designers, mastering clearance allowances ensures smooth mechanical operation, predictable fits, and zero post-print clean-up frustration.
The Mechanics of Dimensional Deviation in 3D Printing
Nozzle Extrusion and Perimeter Squish:
The first perimeter pass laid against an inner or outer wall naturally expands outward under nozzle pressure, effectively shrinking internal hole diameters and enlarging external perimeters beyond exact CAD boundaries.
Thermal Contraction and Material Cooling:
As extruded thermoplastic strands cool from printing temperatures down to ambient room conditions, polymers like ABS, ASA, and even modified PLAs contract at varying rates, introducing localized dimensional warping along long axes.
Z-Axis Stair-Stepping Friction:
Cylindrical pins and sliding rails printed vertically suffer from horizontal layer stepping, creating micro-roughness that exponentially increases friction against mating surfaces unless adequate clearance is introduced.
Shop Floor Guidelines for Clearance Allowances
Clearance Fits for Free-Moving Parts:
Design a diametric clearance gap of 0.2 mm to 0.4 mm (total difference between mating faces) for hinges, rotating pins, and sliding mechanisms to ensure unrestricted movement without excessive mechanical slop.
Rotational Clearance Adjustments:
When designing interlocking assemblies that require rotation, increase radial clearance slightly near sharp corners and avoid perfectly concentric tight fits that trap debris and cause binding.
Calibrating Flow Rate and Horizontal Expansion:
Fine-tune your slicer's horizontal hole expansion and dimensional compensation settings to bridge the gap between digital models and real-world extrusion realities.
Mastering clearance engineering transforms 3D printing into a true rapid-manufacturing powerhouse. By building empirical offset rules into your CAD workflow, your workshop can consistently produce drop-in mechanical assemblies that move freely, align perfectly, and perform reliably under industrial operating conditions.
